KEYENCE CA-D5MX New and Original High quality

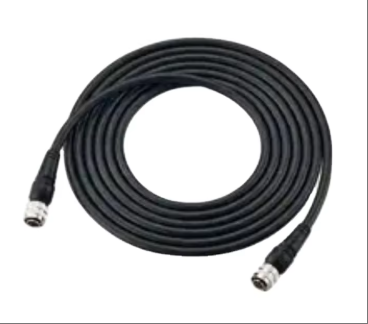

CA-D5MX

The CA-D5MX model product is a high-performance light source connection cable designed specifically for industrial vision systems, with precision optical transmission and industrial grade stability, suitable for automated detection, precision measurement, and high-precision image acquisition scenarios. This product adopts an original imported design and supports seamless compatibility with Keyence series visual sensors, lighting controllers, and high-resolution lenses (such as CA-LH12). Its dual shielding structure and 5-meter standard line length can effectively reduce electromagnetic interference, ensuring the noise resistance and reliability of signal transmission. In terms of technical parameters, CA-D5MX supports 10-30VDC wide power input and is suitable for 24VDC industrial voltage environments. When combined with the Keyence vision system, it can achieve micrometer level edge detection, height difference calculation, and multi-target synchronous measurement functions, especially suitable for fields such as electronic component detection and semiconductor packaging positioning that require strict stability of light sources. In addition, this model provides a one-year warranty service, is available in stock, and supports bulk procurement. It has stable inventory at automation equipment suppliers in Shenzhen, Guangzhou, and other places to meet the rapid deployment needs of industrial production lines.

Technical specifcations for CA-D5MX

Electrical parameters

Input voltage: Supports wide voltage input from 12VDC to 24VDC, compatible with common power supply standards for industrial automation equipment.

Power consumption: In normal lighting mode, the power is 51.4W, and in high brightness mode, it can reach 71.0W, meeting the requirements of high-intensity lighting.

Dimming responsiveness: Dimming response time ≤ 1ms, supports rapid dynamic adjustment of light source intensity, suitable for high-speed detection scenarios.

Dimming method: Through fixed current control (1024 level digital dimming), it can be combined with CA-DC60E controller to achieve multispectral luminescence.

2. Optical parameters

Light source type: multispectral light source, supports LumiTrax ™ Technology covering ultraviolet (405nm), blue light (457nm), green light (527nm), orange light (600nm), red light (660nm), far red light (730nm), infrared (860nm), and white light (600nm) bands.

Peak wavelength: The peak wavelength of each LED band is precise, ensuring the accuracy of color recognition and defect detection.

Light source type extension: compatible with various types such as circular light sources, strip light sources, dome light sources, backlight light sources, etc., supporting direct illumination, multi angle illumination and other modes.

3. Connection and Interface

Connection method: Special cables are used for connection, supporting standard lengths of 3m, 5m, and 10m, and can be extended up to 30m (with the need for extension cables).

Interface type: Equipped with a 12 pole circular connector to ensure stable signal transmission.

Scalability: Supports multispectral light sources and LumiTrax ™ The combination of light sources meets complex detection requirements.

4. Environmental adaptability

Working temperature: 0 ℃ to+40 ℃, suitable for conventional industrial environments.

Humidity range: Relative humidity ≤ 65% RH (no condensation), suitable for dry or moderately humid environments.

Protection level: Although the IP level is not clearly marked, the Keyence light source system usually has a dust-proof design to ensure long-term stable operation.

5. Physical parameters

Weight: The basic model weighs about 560g, which increases to about 680g after installing dome accessories and 690g for polarizing accessories, making it easy to integrate and install.

Installation method: Supports direct fixation or installation through a bracket, compatible with Keyence light source adapters (such as CA-DRM5X/10X/20X).

6. Compatibility and Scalability

Controller compatibility: Can be used in conjunction with CA-DC60E, CA-DC50E/DC30E and other controllers to achieve precise control of the light source.

Accessory Expansion: Supports optional dome accessories (CA DRM (DA) series) and polarized accessories (CA DRM (PA) series) to enhance lighting effects.

Multi device connection: Two devices (such as CA-DRW20X) can be connected on CA-DC50E/DC30E, but attention should be paid to the maximum light limit.

7. Application scenarios

Industrial testing: suitable for high-precision testing scenarios such as electronic components, semiconductor packaging, and precision parts.

Defect identification: using multispectral light sources and LumiTrax ™ Technology enables micrometer level edge detection, height difference calculation, and synchronous measurement of multiple targets.
