VRPA-CM-Q6-E

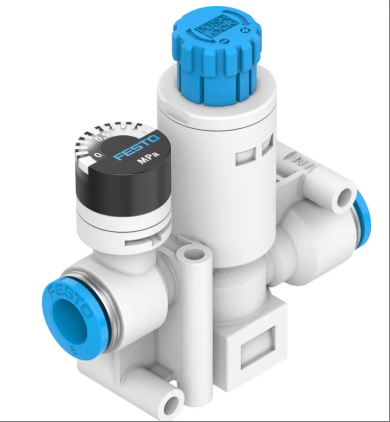

Festo VRPA-CM-Q6-E is a high-precision pressure reducing valve designed specifically for pneumatic systems, with a pressure regulation range of 1 bar to 8 bar and a standard rated flow rate of 90 l/min (standardized according to DIN 1343). It uses double-sided QS-6 quick connect fittings and supports inline installation or integration into valve islands. Its core advantages include:
Efficient and energy-saving: By accurately adjusting system pressure, energy consumption is reduced and equipment life is extended;
Stable and reliable: Equipped with a balanced lifting valve, it has a fast response speed and high pressure control accuracy;
Modular design: compact structure, saves installation space, supports multiple accessory extensions;
Widely applicable: Suitable for fields such as industrial automation, pneumatic control, and process equipment.
This model has become a key component for pressure control in pneumatic systems due to its high reliability, flexible configuration, and ease of maintenance.
Technical specifcations for VRPA-CM-Q6-E
Model and identification
model: VRPA-CM-Q6-E
Product Code: 8086004
Global Trade Item Code (GTIN): 4052568458683
pressure adjustment range
Adjustment range: 1 bar to 8 bar
Traffic characteristics
Standard rated flow rate: 90 l/min (standardized according to DIN 1343)
Interface specifications
Gas interface (port 1): QS-6
Gas interface (port 2): QS-6
Structure and Materials
Structure type: Modular design, compact structure
Installation method: Supports inline installation or integration into the valve island
Material: RoHS compliant, meeting industrial environmental requirements
performance and reliability
Response speed: fast response, high pressure control accuracy
Balance lift valve: Built in balance lift valve to ensure pressure stability
Environment and compatibility
Applicable temperature range: 0 ° C to 60 ° C
Static seal material: NBR (nitrile rubber)
Protection level: meets industrial environmental standards
Attachments and extensions
Recommended attachments:
Plastic trachea (such as PUN-H-6X1-NT, PUN-H-6X1-BL, etc.)
Unidirectional throttle valve (such as GRLA-1/8-QS-6-D)
Gas separation block (such as FR-8-1/8)
application area
Suitable for fields such as industrial automation, pneumatic control, process equipment, and precision machinery.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
