QSY-8

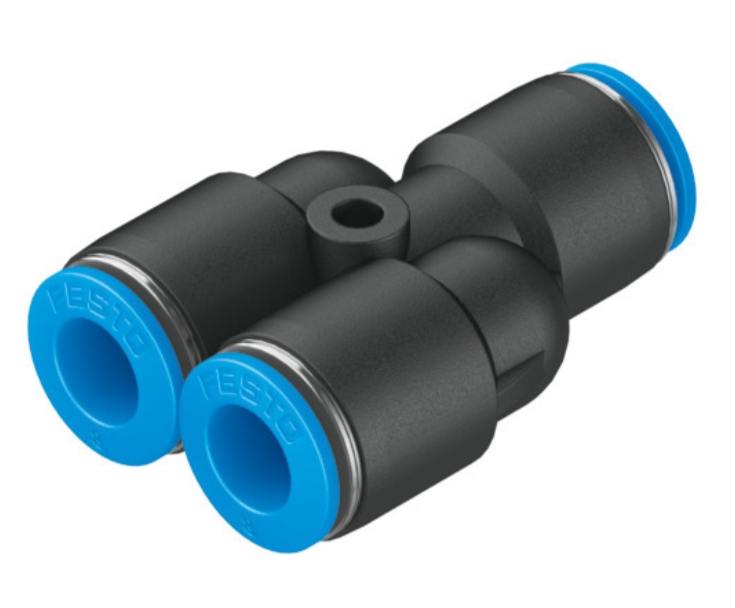

Festo QSY-8 Push-in Y-connector Brand new

Festo QSY-8 Push-in Y-connector

  • Brand:

    FESTO
  • Item no.:

    QSY-8
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    Germany
  • Color:

    New sealed
  • Goods stock:

    11
  • Lead Time:

    In stock/1-3days

Festo QSY-8 Push-in Y-connector



Description

The Quick Star QSY and QSMY range offer a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality Y shaped adapters are available in various sizes and configurations including equal, reducing and miniature size to suit your tubing diameter, they offer both a secure and reliable connection.









Information

• Maximum flexibility for each pneumatic fitting

• Effortless, quick and simple push-in installation

• Tube to tube (hose) connection style for use in pneumatic applications

• Wide operating temperature range of -10 to +80°C

• Air pressure ranges of up to 14 bar

• Available with a variety of different diameter connector sizes

• Strong and durable thermoplastic (PBT)

• Mini size push-in fitting, ideal for confined spaces





Technical Data

Size:Standard

Nominal width:5.7 mm

Type of seal on screwed plug:Coating

Mounting position:Any

Design:Y-shape

Pack size:10

Structural design:Push-pull principle

Operating pressure for entire temperature range:-0.095 MPa ... 0.6 MPa

Operating pressure for entire temperature range:-0.95 bar ... 6 bar

Operating pressure for entire temperature range:-13.775 psi ... 87 psi

Temperature-dependent operating pressure:-0.095 MPa ... 1.4 MPa

Temperature-dependent operating pressure:-0.95 bar ... 14 bar

Temperature-dependent operating pressure:-13.775 psi ... 203 psi

Information on operating pressure:Water: max. 0.6 MPa at max. 50 °C

Operating medium:Compressed air as per ISO 8573-1:2010 [7:-:-]  Water (liquid, ice-free)

Information on operating and pilot media:Operation with oil lubrication possible

Corrosion resistance class (CRC):1 - Low corrosion stress

LABS (PWIS) conformity:VDMA24364-B1/B2-L

Cleanroom class:Class 4 according to ISO 14644-1

Ambient temperature:-10 °C ... 80 °C

Product weight:16 g

Pneumatic connection 1:for pneumatic tubing outside diameter 8 mm

Pneumatic connection 2:for pneumatic tubing outside diameter 8 mm

Releasing ring color:Blue

Note on materials:RoHS-compliant

Housing material:PBT

Releasing ring material:POM

Material of tubing seal:NBR

Material of tube retaining claw:High-alloy stainless steel





Find the perfect accessories to complete your product assembly

GRLA-1/8-QS-8-D

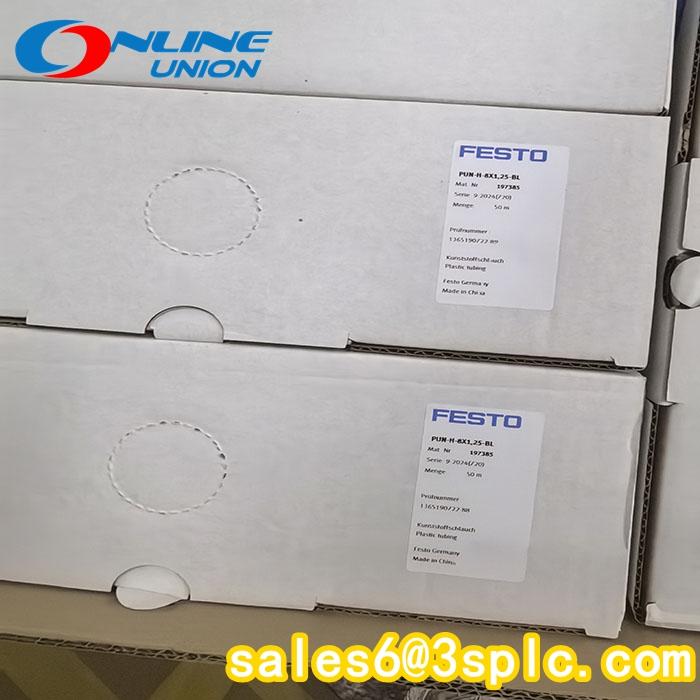

PUN-H-8X1,25-BL

U-1/4

GRLA-1/8-QS-6-D





Our Services:

1、All our products are new and original, and of good quality.

2、Our prices are very competitive.

3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、All inquiries will be valued and will reply in 24.





Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.





More Products In Stock:

QSM-4 ADVU-25-50-P-A CPV14-M1H-5LS-1/8
QST-10 DFSP-50-30-PS-PA HEE-D-MIDI-24
MA-40-10-R1/4-EN DSNU-16-80-PPV-A MFH-5-1/4
PUN-12X2-BL DSNU-25-80-PPV-A SV-3-M5
PUN-8X1,25-BL PEV-1/4-B-OD QS-1/8-8
