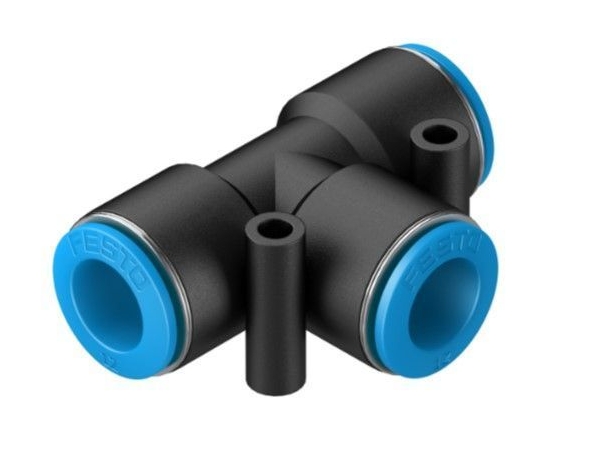

Festo QST-12 153132 Push-in T-connector Brand new

Festo QST-12 153132 Push-in T-connector

Description

Push-in T connector QST-10 Size=Standard, Nominal size=6,7 mm, Assembly Position=Any, Container size=10, Design structure=Push/pull principle

Information

Weight：35 g / pcs

GTIN：4052568032258

Packing unit：10 pcs

Customs duty number：39174000

Manufacturer：Festo

Technical Data

Size：Standard

Nominal width [mm]：8,7

installation position：arbitrary

Packing size：10

Construction set up：Push-​pull principle

Operating pressure complete temperature range [bar]：-0.95 to 6

Temperature depending operating pressure [bar]：-0.95 to 14

Maritime classification：see Certificate

Operating medium：Compressed air to ISO 8573-​1:2010 [7:-:-],

Water according to manufacturer declaration at www.festo.com

Information about operating and control medium：Oiled operation possible

Corrosion resistant class KBK：1 - low corrosion stress

ambient temperature [°C]：-10 to 80

Pneumatic connection 1 For hose exterior diameter：12 mm

Pneumatic connection 2 For hose exterior diameter：12 mm

Sleeve colour：blue

Material information：RoHs compliant

Housing material：PBT

Sleeve material：POM

Tube seal, hose seal material：NBR

Hose clamping segment material：High-​alloyed stainless steels

Number of outlets：2

Number of supply lines：1

Find the perfect accessories to complete your product assembly

PUN-H-12X2-BL

PUN-H-8X1,25-BL

MSSD-EB

B-1/4

Our Services:

1、All our products are new and original, and of good quality.

2、Our prices are very competitive.

3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
