Festo QSM-4 Push-in connector Brand new

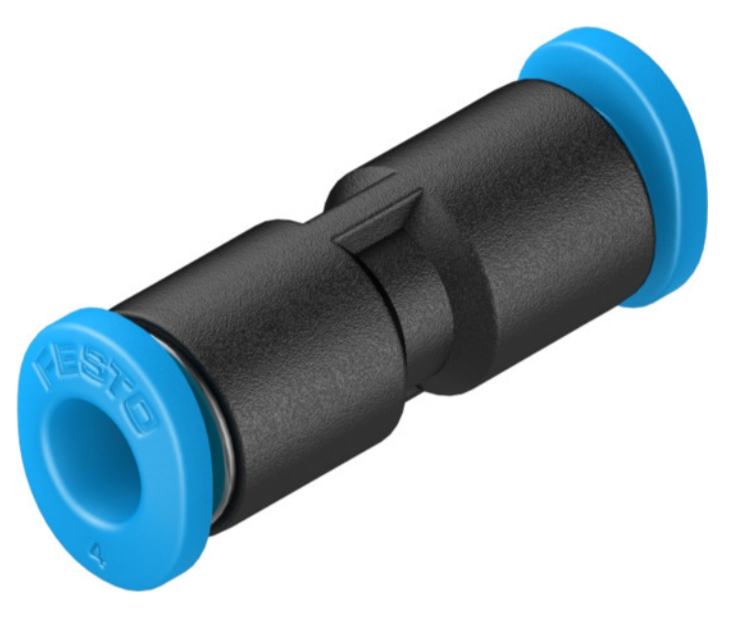

Festo QSM-4 Push-in connector

Description

This tube-to-tube adaptor from Festo is a crucial element for building a pneumatic system. It comes with push-in fittings that let you connect it quickly and easily without the need for tools. As it's made of PBT thermoplastic, it's strong and durable, so you can depend on it for a long service life. For versatility, the unit can handle air pressures up to 14 bar. Both ends have a 4mm open diameter, so this is an ideal choice for installation in enclosures with limited space.

• Operating temperature range of -10°C to +80°C for reliable industrial use

• POM release rings combine low friction with high stiffness to stand up to repeated use

• Nitrile rubber tubing seals guard against leakage to keep your system working at optimum efficiency

Specifications

・Housing material: PBT

・Size: Mini

・Operating pressure(bar): -0.95~6

・Releasing ring color: Blue

・Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]

・Corrosion resistance class (CRC): 1 - Low corrosion stress

Technical Data

Size：Mini

Nominal width：2.6 mm

Mounting position：Any

Design：Straight design

Pack size：10

Structural design：Push-pull principle

Operating pressure for entire temperature range：-0.095 MPa ... 0.6 MPa

Operating pressure for entire temperature range：-0.95 bar ... 6 bar

Operating pressure for entire temperature range；-13.775 psi ... 87 psi

Temperature-dependent operating pressure；-0.095 MPa ... 1.4 MPa

Temperature-dependent operating pressure：-0.95 bar ... 14 bar

Temperature-dependent operating pressure：-13.775 psi ... 203 psi

Operating medium：Compressed air as per ISO 8573-1:2010 [7:-:-]

Information on operating and pilot media：Operation with oil lubrication possible

Corrosion resistance class (CRC)：1 - Low corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Ambient temperature：-10 °C ... 80 °C

Product weight：2 g

Pneumatic connection 1：for pneumatic tubing outside diameter 4 mm

Pneumatic connection 2：for pneumatic tubing outside diameter 4 mm

Releasing ring color：Blue

Note on materials：RoHS-compliant

Housing material：PBT

Releasing ring material：POM

Material of tubing seal：NBR

Material of tube retaining claw：High-alloy stainless steel

Find the perfect accessories to complete your product assembly

 QSO Releasing tool
