Festo QS-8 153033 Push-in connector Brand new

Festo QS-8 153033 Push-in connector

Description

The Quick Star QS range offer a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality, push in tube to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

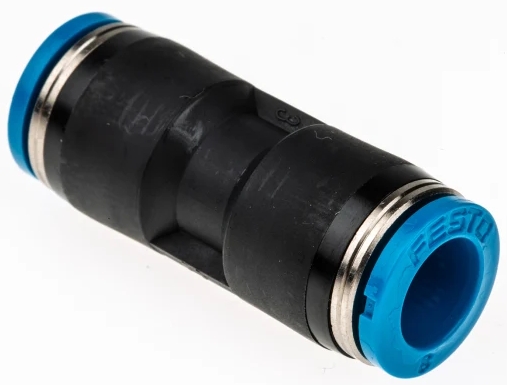

The QS-8 from Festo is a high quality, 8 mm pneumatic connector which offers both maximum flexibility and quick installation due to the convenient push-in fitting type.

Information

• Maximum flexibility for each pneumatic fitting

• Effortless, quick and simple push-in installation

• Tube to tube (hose) connection style for use in pneumatic applications

• Wide operating temperature range of -10 to +80°C

• Air pressure ranges of up to 14 bar

• Available with a variety of different diameter connector sizes

• Strong and durable thermoplastic (PBT)

• Connectors are available with or without a push in sleeve

• QS Series

• Tubing size O.D 8 mm

• Push in type fitting ensuring quick and simple installation

• Tube to tube style adapter

• Strong and durable PBT body material

• Any mounting position

Technical Data

Size：Standard

Nominal width：7 mm

Mounting position：Any

Design：Straight design

Pack size：10

Structural design：Push-pull principle

Operating pressure for entire temperature range：-0.095 MPa ... 0.6 MPa

Operating pressure for entire temperature range：-0.95 bar ... 6 bar

Operating pressure for entire temperature range：-13.775 psi ... 87 psi

Temperature-dependent operating pressure：-0.095 MPa ... 1.4 MPa

Temperature-dependent operating pressure：-0.95 bar ... 14 bar

Temperature-dependent operating pressure：-13.775 psi ... 203 psi

Information on operating pressure：Water: max. 0.6 MPa at max. 50 °C

Operating medium：Compressed air as per ISO 8573-1:2010 [7:-:-]

Water (liquid, ice-free)Information on operating and pilot media：Operation with oil lubrication possibleCorrosion resistance class (CRC)：

1 - Low corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Cleanroom class：Class 4 according to ISO 14644-1

Ambient temperature：-10 °C ... 80 °C

Product weight：9.4 g

Pneumatic connection 1：for pneumatic tubing outside diameter 8 mm

Pneumatic connection 2：for pneumatic tubing outside diameter 8 mm

Releasing ring color：Blue

Note on materials：RoHS-compliant

Housing material：PBT

Releasing ring material：POM

Material of tubing seal：NBR

Material of tube retaining claw：High-alloy stainless steel

Find the perfect accessories to complete your product assembly

PUN-H-8X1,25-BL

PUN-H-6X1-BL

PUN-8X1,25-BL

PUN-H-10X1,5-BL
