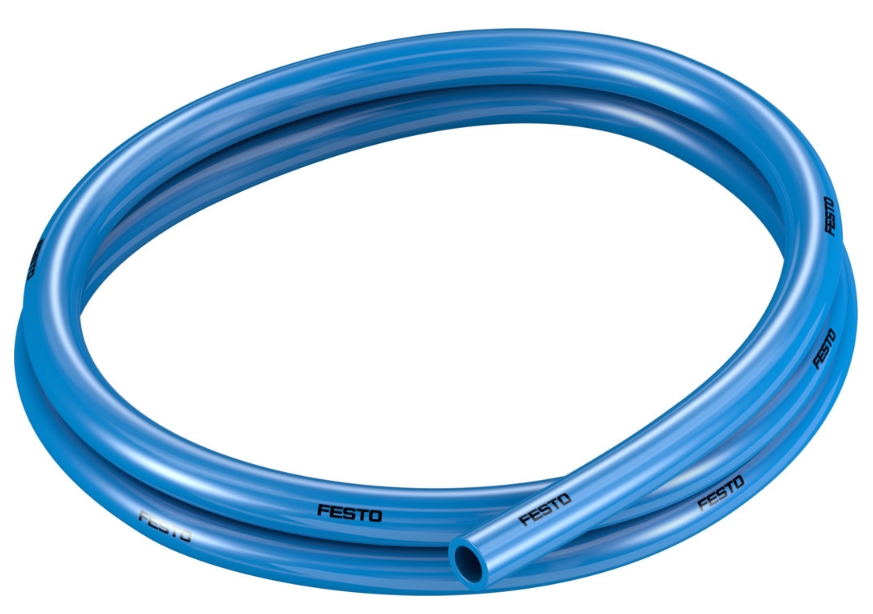

Festo PUN-12X2-BL Plastic tubing
Description
Air hose, PUN Series
Theses Air tubes are used in various industries especially in penumatic system. They offer a wide variety of sizes to choose from.
[Feature]
● Outer Diameter Minimum/Maximum (mm.) : 2 to 16
● Inner Diameter Minimum/Maximum (mm.) : 1.2 to 11
● Length (m.) : 50, 200, 400 and 500
● Operating Temperature Range (℃) : -35 to 60
● Material : TPE-U(PU)
● Color : Black, Blue, Green, Natural, Red and Translucent color such as blue, green and yellow
[Application]
It is used to connect with pneumatic equipments such as cylinders, fitting, directional control valve and so on.
Specifications
Product Name：12mm Festo Plastic Tubing PUN-H-12X2-BL 197387-6
Weight：1.000000
Test Certificate：No
Model：PUN-H-16X2, 5-BL
HSN Code：197388
Freight：To pay by Customer, extra at actuals. Godown Delivery
Category：Pneumatics, Fittings, Pneumatic Tubing
Product Code：DT-0537
Technical Data
Outside diameter：12 mm
Bending radius relevant for flow rate：62 mm
Inside diameter：8 mm
Min. bending radius：33 mm
Application note：TPE-U Ester based
Tubing characteristics：Suitability for energy chains
Operating pressure for entire temperature range： -0.095 MPa ... 0.7 MPa
Operating pressure for entire temperature range： -0.95 bar ... 7 bar
Operating pressure for entire temperature range： -13.775 psi ... 101.5 psi
Temperature-dependent operating pressure： -0.095 MPa ... 1 MPa
Temperature-dependent operating pressure： -0.95 bar ... 10 bar
Temperature-dependent operating pressure： -13.775 psi ... 145 psi
Certification：German Technical Control Board (TÜV)
Certificate issuing authority： B 013277 0506 00
Operating medium：Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test：UL94 HB
LABS (PWIS) conformity： VDMA24364-B2-L
Ambient temperature： -35 °C ... 60 °C
Product weight by length： 0.0767 kg/m
Pneumatic connection：For plug connection outside diameter 12 mm
Color：Blue
