Festo PEV-1/4-B-OD Pressure switch Brand new

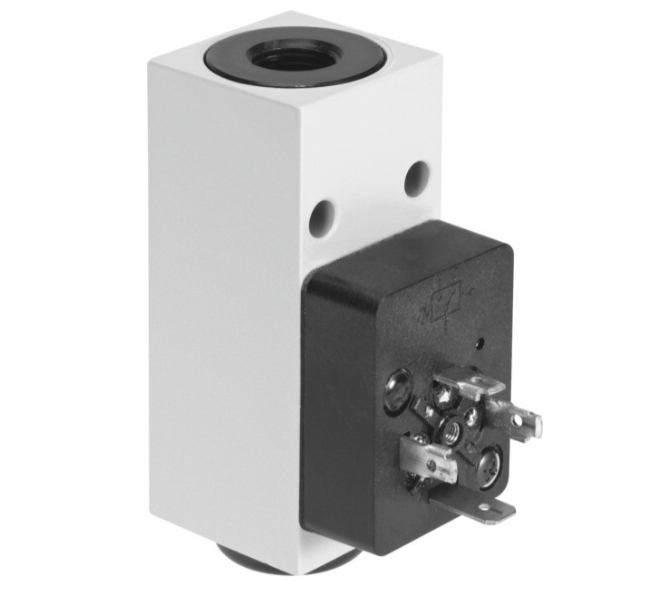

Festo PEV-1/4-B-OD Pressure switch

Description

Regulate the flow of relative pressure in your pneumatic system using this pressure switch from Festo. For versatility, you can use it to moderate both compressed air and water. Thanks to its broad operating pressure range between 1 and 12 bar, it's suitable for use in low-pressure and high-pressure equipment. This unit features a DIN plug for quick connection to an electrical power supply. A yellow LED indicator displays its operating status for easy monitoring. Its tough aluminium die-cast housing is resistant to impacts for lasting use.

• IP65 (ingress protection) rating indicates it's dustproof and protected from low-pressure water jets

• Ambient operating temperature range -20°C and +80°C to withstand challenging environments

• Can be lubricated for smoother movement

• Lightweight at 194g for reduced strain on equipment

Information

Manufacturer：FESTO

Manufacturer Part No：PEV-1/4-B-OD

Order Code：3439440

Product Range：PEV Series

Also Known As：175250

Technical Data

onforms to standard：EN 60947-5-1

Symbol：00991471

Approval：CCC

CE mark (see declaration of conformity)：To EU Low Voltage Directive

UKCA marking (see declaration of conformity)：To UK regulations for electrical equipment

Explosion protection：The information in the certificate must be observed!

Explosion protection：Zone 1 (ATEX)

Explosion protection：Zone 2 (ATEX)

Explosion protection：Zone 21 (ATEX)

Explosion protection：Zone 22 (ATEX)

Note on materials：RoHS-compliant

Measured variable：Relative pressure

Measurement method：Pneumatic/electric pressure transducer

Operating pressure：0.1 MPa ... 1.2 MPa

Operating pressure：1 bar ... 12 bar

Operating medium：Compressed air to ISO 8573-1:2010 [7:-:-]  Water

Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)

Media temperature：-20 °C ... 80 °C

Ambient temperature：-20 °C ... 80 °C

Switching element function：Changeover switch

Max. switching frequency：3 Hz

Max. switching output voltage AC：250 V

Max. switching output voltage DC：125 V

Max. output current：5000 mA

Find the perfect accessories to complete your product assembly

PEV-1/4-WD-LED-24

MSSD-C-4P

ESK-1/4-1/4

KMEB-1-24-2.5-LED
