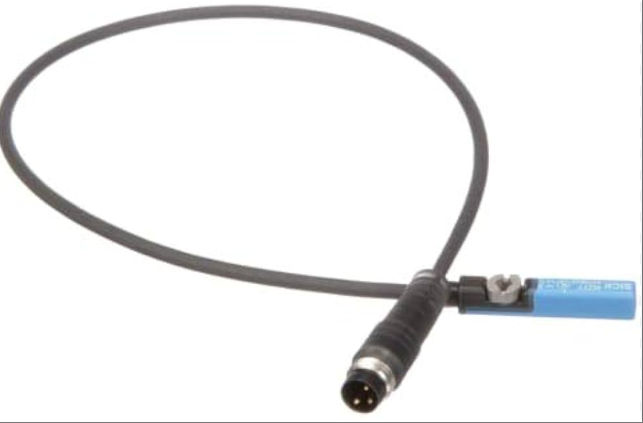

MZT7-03VPS-KP0
Technical parameters:
Measurement range: Supports 360 ° full stroke detection, suitable for rotating or linear motion scenarios;
Output signal: Provides high-precision digital signals, compatible with industrial equipment such as PLC and motion controllers;
Resolution and accuracy: With micrometer level resolution, it ensures real-time and accurate position feedback.
Structure and Installation:
Compact design: compact in size, easy to integrate into small spaces;
Installation method: Supports various installation methods such as flange installation and axial installation, adapting to different equipment requirements;
Protection level: Compliant with industrial environmental standards, with dust-proof and waterproof performance.
Application scenarios:
Automated production line: used for robot end effectors, conveyor belt positioning, etc;
Precision machinery: such as position monitoring in CNC machine tools and semiconductor equipment;
Logistics system: such as position detection in automatic warehousing and sorting equipment.
Advantages:
High reliability: adopting non-contact detection technology to reduce wear and extend service life;
Flexible configuration: supports parameterized settings to adapt to different working conditions;
Easy to integrate: Provides multiple interface protocols (such as IO Link) to simplify system integration.
This type of sensor is an ideal choice for position detection in industrial automation due to its high precision, stability, and ease of use.
Technical specifcations for MZT7-03VPS-KP0
model: MZT7-03VPS-KP0
Brand: SICK (actually produced by SICK, Festo may be mentioned as a channel or compatible product)
Main body style: block shaped
Encapsulation/shell: 32.2mm × 5.7mm × 5.8mm
Electrical parameters
Working voltage: 10VDC~30VDC
Output type: PNP-NO (normally open)
Switching current: 100mA
Maximum DC voltage: 30V
Switching frequency: 1kHz
detection performance
Detection range: 10mm
Polarity reversal protection: Yes
Connector type: M8 connector, cable type termination
Environment and Protection
IP protection level: IP65、IP67
Maximum operating temperature:+ 80°C
Minimum operating temperature:- 30°C
Certification and Standards
Compliant with standards: CE certification, cULus accreditation EN 60947-5-2
Lead free status: Compliant with RoHS standards
Installation method: Panel installation
Thread size: M8
Material: The shell is made of plastic
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
