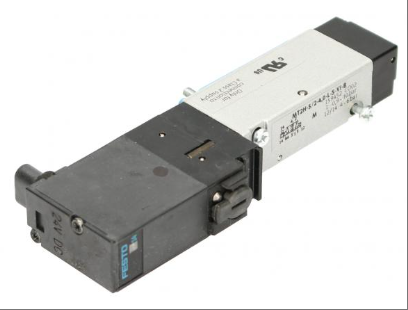

Festo MT2H-5/2-4,0-L-S-VI-B 159452 New and Original High quality

MT2H-5/2-4,0-L-S-VI-B 159452

Electrical drive and high flow: using electrical drive method, the standard rated flow reaches 700 l/min, suitable for high flow demand scenarios;

Wide pressure range: The working pressure range is -0.9 to 10 bar, suitable for various working conditions;

Compact design and flexible installation: With through-hole installation type, the assembly position is arbitrary, making it easy to integrate into a compact space;

High sealing and corrosion resistance: The sealing principle is soft sealing, and the shell is made of die cast aluminum material with a corrosion resistance level of CRC 2, suitable for harsh environments;

Adjustable exhaust function: The exhaust function can be throttled to meet different application needs;

Compatibility of working medium: Compatible with filtered or unlubricated dry compressed air, with a medium temperature range of -5 ° C to 50 ° C;

Pilot control and low power consumption: Controlled by the pilot, the pilot pressure range is 4 to 6 bar, the coil complies with DIN 43650 standard, C-type (EB coil), and designed for low power consumption.

This model is widely used in automated production lines, pneumatic control valve islands, and industrial equipment due to its high reliability, flexible installation, and energy-saving characteristics. It is a key actuator in pneumatic systems.

Technical specifcations for MT2H-5/2-4,0-L-S-VI-B 159452

Model and identification

model: MT2H-5/2-4,0-L-S-VI-B

Product Code: 159452

Valve function

Valve type: 5/2 bistable solenoid valve

Drive and Control

Drive type: Electric drive

Pilot type: Controlled by pilot

Pilot pressure range: 4-6 bar

Coil characteristics: Compliant with DIN 43650 standard, C-type (EB coil), low power consumption

Flow and pressure

Standard rated flow rate: 700 l/min

Working pressure range: -0.9 to 10 bar

Structure and Materials

Design structure: piston slider

Sealing principle: Soft sealing

Shell material: die cast aluminum

Sealing material: NBR (nitrile rubber)

Installation and Connection

Installation type: with through-hole, assembly position arbitrary

Pneumatic connection: Port 1 to Port 5 are both G1/8 bases

Hand control device: with accessories, lockable

Environment and Media

Working medium: filtered, unlubricated or lubricated dry compressed air (filtration accuracy of 40 μ m)

Medium temperature range:- 5 ° C to 50 ° C

Environmental temperature range:- 5 ° C to 50 ° C

performance and reliability

Reverse switching time: 10 ms

Corrosion resistance level: CRC 2

Exhaust function: throttling capability

Flow direction: reversible

Electrical parameters

Plug style: Complies with DIN 43650 standard

Voltage and power: Specific parameters should refer to the product manual (such as 110 V AC: 50/60 Hz, switching power 3 VA, maintaining power 2.4 VA)
