Festo MS6-LWS-1/4-U-V New and Original High quality

MS6-LWS-1/4-U-V

Efficient condensate separation: using centrifugal separation technology, the condensate separation efficiency reaches 99%, effectively protecting pneumatic components from moisture erosion;

High flow support: Standard rated flow rate of 2400 l/min (standardized according to DIN 1343), meeting the requirements of high load pneumatic systems;

Compact design: The module width is 62mm, the pneumatic interface is G1/4, and it supports the installation of air circuit boards, suitable for various installation scenarios;

Corrosion resistance and protection: The shell is made of die cast aluminum material with a corrosion resistance level of CRC 2, suitable for harsh industrial environments;

Easy maintenance: No need to replace the filter element, maintain efficient separation until reaching maximum flow rate;

Scalability and compatibility: Other modules in the Festo MS series (such as filters, pressure reducing valves, etc.) can be combined to achieve flexible expansion of gas source processing functions.

This model, with its efficient separation, high flow support, compact design, and corrosion resistance, has become the core component for compressed air water removal in pneumatic systems. It is widely used in the fields of automated production lines, industrial robots, and precision equipment.

Technical specifcations for MS6-LWS-1/4-U-V

Model and identification

model: MS6-LWS-1/4-U-V

Product Code: 564868

Interface and size

Pneumatic interface: G1/4

Module width: 62mm

Flow and pressure

Standard rated flow rate: 2400 l/min (standardized according to DIN 1343)

Working pressure range: 2 bar -12 bar

separation efficiency

Condensed water separation efficiency: 99% (maintain efficient separation before reaching maximum flow rate)

Structure and Materials

Shell material: die cast aluminum

Corrosion resistance level: CRC 2

Function and Features

Maintenance method: No need to replace the filter element

Optional configuration: Supports fully automatic or fully automatic electrically controlled condensate drain (to be purchased separately)

Application and compatibility

Applicable scenarios: industrial automation, pneumatic control systems, clean rooms, etc

Compatibility: Can be combined with other Festo MS series modules (such as filters, pressure reducing valves, etc.)

Product advantages:

Efficient separation: 99% condensate separation efficiency, protecting pneumatic components from moisture erosion.

High flow support: rated flow of 2400 l/min, meeting the requirements of high load pneumatic systems.

Compact design: 62mm module width, saving installation space and adapting to various installation scenarios.

Corrosion resistance: Die cast aluminum shell, corrosion resistance grade CRC 2, suitable for harsh industrial environments.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

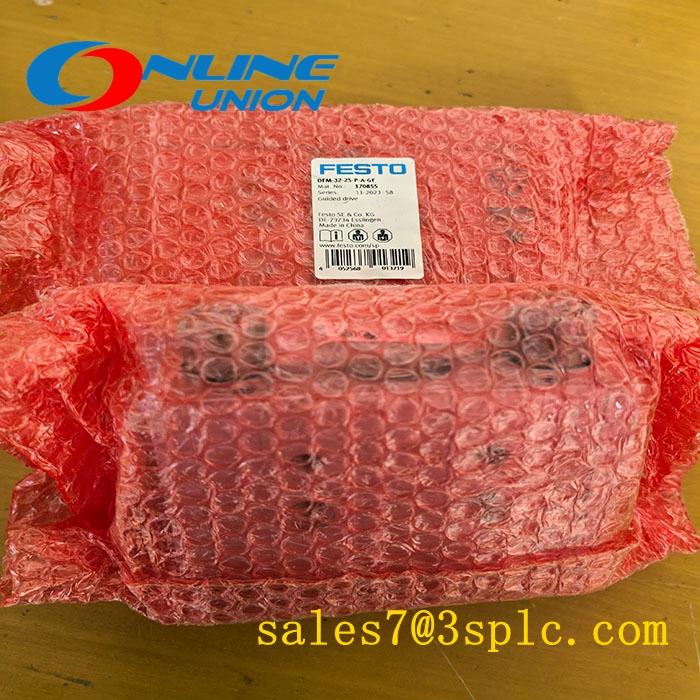

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
