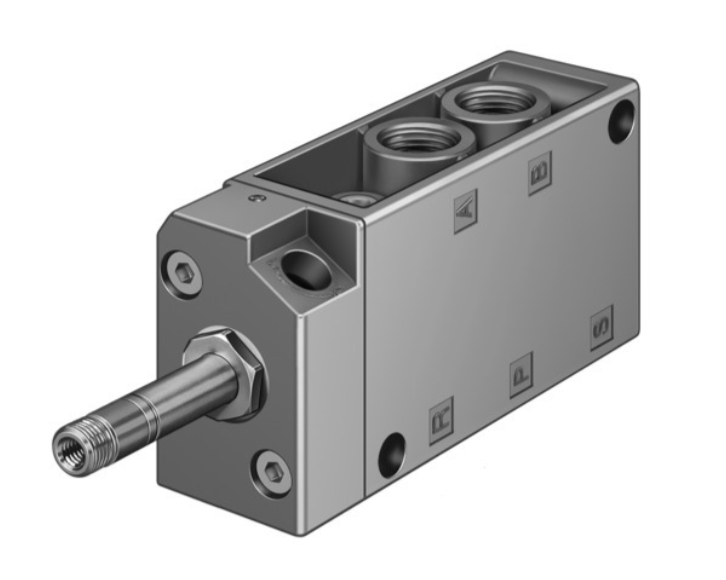

Festo MFH-5-1/4 Solenoid valve Brand new

Festo MFH-5-1/4 Solenoid valve

Description

Solenoid valve MFH-5-1/4 With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function=5/2 monostable, Type of actuation=electrical, Width=30,5 mm, Valve size=30,5 mm, Standard nominal flow rate=1000 l/min

Information

Logistics dimensions (L x W x H)：135x60x35 mm

Logistic Weight：266 g

Type：5/2 monostable

Volume flow rate：1 l/min

Technical Data

Valve function：5/2-way, monostable

Type of actuation：Electric

Construction width：30.5 mm

Standard nominal flow rate (standardised to DIN 1343)：1000 l/min

pneumatic working port：G1/4

Operating voltage：Via solenoid coil, must be ordered separately

Operating pressure：0.22 MPa ... 0.8 MPa

Operating pressure：2.2 bar ... 8 bar

Design：Poppet seat

Type of reset：Mechanical spring

Approval：c UL us - Recognized (OL)

Degree of protection：IP65

Nominal size：7 mm

Grid dimension：32 mm

Exhaust-air function：With flow control option

Sealing principle：Soft

Mounting position：optional

Manual override：Detenting

Type of piloting：Pilot actuated

Flow direction：Non-reversible

Symbol：00991035

lap：Underlap

b value：0.19

C value：4.49 l/sbar

Switching time off：29 ms

Switching time on：9 ms

Max. positive test pulse with 0 signal：2200 µs

Max. negative test pulse with 1 signal：3700 µs

Characteristic coil data：See solenoid coil, to be ordered separately

Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC：1 - Low corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Storage temperature：-20 °C ... 60 °C

Media temperature：-10 °C ... 60 °C

Ambient temperature：-5 °C ... 40 °C

Product weight：290 g

Electrical connection：Via F coil, to be ordered separately

Type of mounting：Either:On manifold rail  With through-hole

Pilot exhaust port 84：M5

Pneumatic connection, port 1：G1/4

Pneumatic connection, port 2：G1/4

Pneumatic connection, port 3：G1/4

Pneumatic connection, port 4：G1/4

Pneumatic connection, port 5：G1/4

Note on materials：RoHS-compliant

Material seals：NBR

Material housing：Die-cast aluminium
