FESTO HGPT-25-A-B-G2 Parallel gripper Fast ship/ Brand new

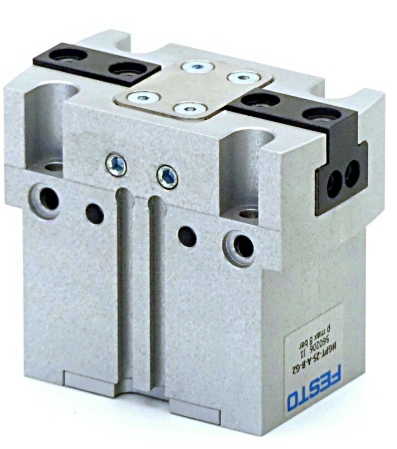

FESTO HGPT-25-A-B-G2 Parallel gripper

parallel gripper HGPT-25-A-B-G2 sturdy, with gripping force retention when closing..-G2. Size=25, Stroke per gripper jaw=6 mm, Max. replacement accuracy=<= 0,2 mmMax. angular gripper jaw backlash ax,ay=<= 0,1 deg, Max. gripper jaw backlash Sz=<= 0,02 mm

Information：

Manufacturer Nr.: HGPT-25-A-B-G2

Manufacturer: Festo

Technical Data：

Size：25

Stroke per gripper jaws：6 mm

Max. replacement accuracy：0.2 mm

Max. angular gripper jaw backlash ax, ay：0.1 deg

Max. gripper jaw backlash Sz：0.02 mm

Rotationally symmetrical：0.2 mm

Repetition accuracy, gripper：0.04 mm

Number of gripper jaws：2

Drive system：Pneumatic

Mounting position：optional

Mode of operation：Double-acting

Gripper function：Parallel

Gripper force back-up：During closing

Design：Wedge-shaped drive Force pilot operated motion sequence

Position detection：Via proximity switch

Symbol：00991895

Operating pressure：4 bar ... 8 bar

Operating pressure of blocked air：0 bar ... 0.5 bar

Max. operating frequency of gripper：3 Hz

Min. opening time at 0.6 MPa (6 bar, 87 psi)：40 ms

Min. closing time at 0.6 MPa (6 bar, 87 psi)：28 ms

Max. mass per external gripper finger：110 g

Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC：2 - Moderate corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Degree of protection：IP40

Ambient temperature：5 °C ... 60 °C

Mass moment of inertia：1.479 kgcm²

Max. force on gripper jaw Fz static：1200 N

Max. torque at gripper Mx static：50 Nm

Max. torque at gripper My static：45 Nm

Max. torque at gripper Mz static：35 Nm

Lubrication interval for guide components：5 MioCyc

Product weight：353 g

Type of mounting：Either: Via female thread and centring sleeve Via through-hole and centring sleeve Via through-hole and dowel pin Via female thread and dowel pin

Pneumatic connection, blocked air：M5

Pneumatic connection：M5

Note on materials：RoHS-compliant

Material cover cap：High-alloy stainless steel

Material housing：Anodised aluminium

Material gripper jaws：Hardened steel
