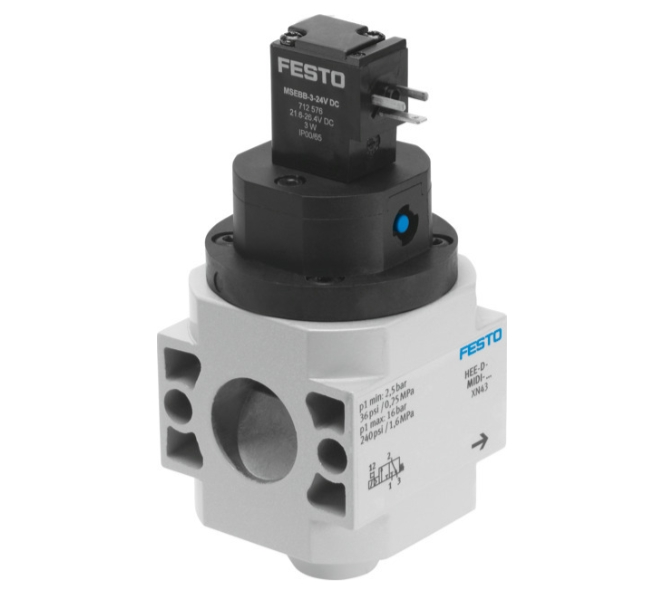

Festo HEE-D-MIDI-24 On/off valve
Description
On-off valve HEE-D-MIDI-24 For Service units, without Threaded Connection plates with FRB Threaded pin Design structure=Piston slide, Type of actuation=electrical, Sealing principle=soft, Exhaust-Air function=not throttleable, Manual override=detenting
Information
Manufacturer Nr.：HEE-D-MIDI-24
Manufacturer：Festo
Weight：0.460000
HS-Code：84812090
Technical Data
Design：Piston gate valve
Type of actuation：Electric
Sealing principle：Soft
Exhaust-air function：Without flow control option
Manual override：Detenting
Type of reset：Mechanical spring
Type of piloting：Pilot actuated
Symbol：00991008
Valve function：3/2-way, closed, monostable
Operating pressure：0.25 MPa ... 1.6 MPa
Operating pressure：2.5 bar ... 16 bar
lap：Overlap
Duty cycle：100%
Characteristic coil data：24 V DC: 2.5 W
Permissible voltage fluctuations：+/- 10 %
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC：2 - Moderate corrosion stress
Note on materials：RoHS-compliant
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Media temperature：-10 °C ... 60 °C
Ambient temperature：-10 °C ... 60 °C
Type of mounting：In-line installation With accessories
Mounting position：optional
Flow direction：Non-reversible
Product weight：500 g
Pneumatic connection, port 3：G1/4
Air purity class at output：Compressed air to ISO 8573-1:2010 [7:4:4]
Inert gases：Electrical connection Type C Plugs To DIN EN 175301-803
Signal status display：With accessories
Material seals：NBR
Material housing：Die-cast aluminium
Find the perfect accessories to complete your product assembly
MSSD-EB U-1/4
KMEB-1-24-5-LED
KMEB-1-24-2.5-LED
