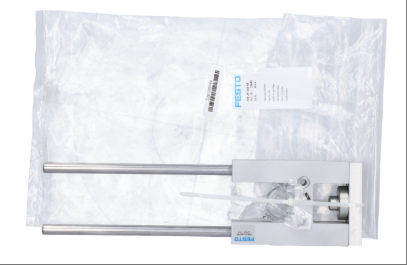

FEN-25-160-KF 33483
High precision guidance: adopting a cyclic ball bearing structure, providing excellent linear motion accuracy, suitable for high-precision operations such as workpiece handling;
Anti torsion design: effectively prevents ISO standard cylinders from twisting under high torque loads, ensuring system stability;
Large stroke support: stroke range 2-250mm (this model has a stroke of 160mm), meeting diverse application needs;
High load capacity: The maximum dynamic output force Fy/Fz reaches 520N, and the static force is 830N, suitable for high load conditions;
Compact structure: When the stroke is 0mm, the basic weight is only 813g, with an additional weight of 12g per 10mm stroke, making installation flexible and space saving;
Environmental adaptability: Operating temperature range of -20 ° C to 80 ° C, in compliance with RoHS environmental standards, suitable for industrial environment requirements.
This model, with high precision, anti torsion, large stroke, and compact design, has become the core component of cylinder guidance in automation equipment and is widely used in fields such as machine tools, packaging machinery, and industrial robots.
Technical specifcations for FEN-25-160-KF 33483
model: FEN-25-160-KF
Product Code: 33483
Guiding Structure and Performance
Guidance method: Circular ball bearing guidance
Anti torsion function: prevents ISO standard cylinders from twisting under high torque loads
Guidance accuracy: high-precision linear motion
Travel and load
Travel range: 2-250mm (this model has a travel of 160mm)
Maximum dynamic output force:
Fy (axial): 520N
Fz (radial): 520N
Maximum static output force:
Fy (axial): 830N
Fz (radial): 830N
Torque and torque
Maximum dynamic torque:
Mx：15Nm
My：20Nm
Mz：20Nm
Maximum static torque:
Mx：24Nm
My：31Nm
Mz：31Nm
Structure and weight
Basic weight (0mm stroke): 813g
Additional mass per 10mm stroke: 12g
Center of gravity offset (every 10mm stroke): 4.7mm
Environment and Materials
Working temperature range:- 20°C - 80°C
Material Science:
Guiding element: heat-treated steel
Shell: anodized aluminum alloy
Yoke plate: anodized aluminum alloy
Installation and compatibility
Installation method: with internal (female) threads
Compliant with the RoHS environmental standard
