Festo DSBC-32-80-PPVA-N New and Original High quality

DSBC-32-80-PPVA-N

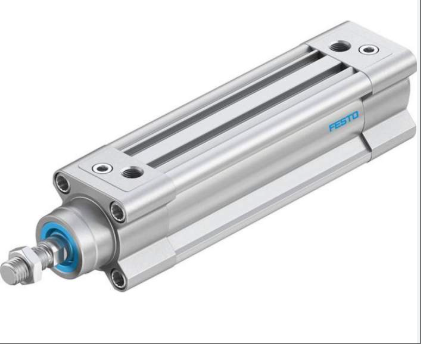

Festo DSBC-32-80-PPVA-N is an ISO standard double acting cylinder designed for high-precision, high load automation applications. Its core features include:

Structure and Performance:

The cylinder has a diameter of 32mm and a stroke of 80mm. It is made of forged aluminum alloy cylinder with smooth treatment and weighs approximately 11kg;

Double end piston rod design, with consistent front and rear stroke force values, theoretical applied force reaches 483N (at 6bar);

Self regulating throttle terminal position buffering, adjustable buffering at both ends to adapt to changes in load and speed.

Installation and compatibility:

Provide various methods such as flange installation, ear shaft installation (such as SBN-20/25), and double earring installation (such as SNCB-32);

Support M10 × 1.25 threaded piston rod, can be paired with joint bearings (SGS-M10 × 1.25), double earrings (SG-M10 × 1.25) and other accessories;

The working pressure range is 1-10 bar, and the working medium is compressed air (compliant with ISO 8573-1:2010 standard).

Application and advantages:

Suitable for picking and placing work, load balancing, and high dynamic motion scenarios, such as robotic arm end effectors and constant feed systems;

Compact design, magnetic switch can be confirmed from 4 directions, axial piping (diameter 6/10), saving installation space;

High guiding accuracy, strong resistance to lateral loads, no need for additional lubrication.

This model has become the preferred solution for linear motion actuators in automation equipment due to its high reliability, flexible installation, and precise control

Technical specifcations for DSBC-32-80-PPVA-N

model: DSBC-32-80-PPVA-N

Type: ISO standard double acting cylinder

Piston diameter: 32 mm

Travel distance: 80 mm

Working mode: Dual action

Working pressure: 0.6 bar~12 bar

Working medium: Compressed air (compliant with ISO 8573-1:2010 [7:4:4] standard)

performance parameter

Theoretical force at 6 bar:

Forward journey: 483 N

Reply itinerary: 415 N

Mobile quality:

At 0 mm stroke: 110 g

Increase every 10 mm stroke: 27 g

Basic weight: 465 g

Additional mass factor per 10 mm stroke: 9 g

Terminal position impact energy: 0.4 J

Buffer length: 20mm

Structure and Materials

Buffer method: Adjustable air buffer (PPV) at both ends

Piston rod thread: M10x1.25

Installation location: Any

Position detection: used for proximity sensors

Cylinder material: forged aluminum alloy

Piston rod material: high alloy steel, corrosion-resistant

Sealing material: TPE-U（PU）

Cover material: die cast aluminum with coating

Environment and compatibility

Environmental temperature:- 20°C ~ 80°C

Corrosion resistance level: CRC 2

Pneumatic connection: G1/8

Installation type: Optional internal (female) thread, with accessories

Application and advantages

High dynamic motion: suitable for high-speed, non-stop motion scenes

Low friction design: low starting pressure, fast dynamic response

Clamping function: can maintain the position of the piston rod during alternating loads or system leaks

Safe application: Additional measures are required to comply with the EU Machinery Directive (such as EN 13849)

Relevant standards

Compliant with ISO 15552 standard

The material complies with RoHS requirements
