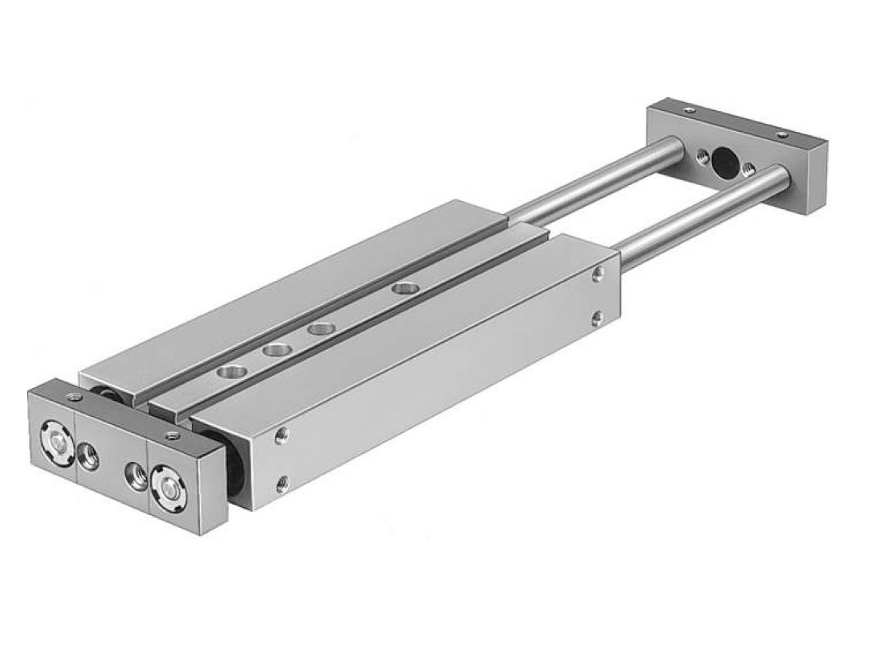

Festo DPZJ-32-80-P-A-S2 159973 Twin cylinder
Description
The Festo twin cylinder that has high force with excellent protection against rotation, twice the force in half the space. Widely spaced piston rods for high load capacity, it has standard bolt with lock nut enables adjustment of the standard strokes within a range of 10 mm.
Information
Precision stroke adjustment
Different drive combinations
Technical Data
Stroke：80 mm
Adjustable end-position range/length：10 mm
Piston diameter：32 mm
Operating mode, drive unit：Yoke
Cushioning：Elastic cushioning rings/plates at both ends
Mounting position：optional
Guide：Plain-bearing guide
Design：Guidance
Position detection：Via proximity switch
Symbol：00991243
Variants：Through piston rod
Operating pressure：0.1 MPa ... 1 MPa
Operating pressure：1 bar ... 10 bar
Max. speed：1 m/s
Mode of operation：Double-acting
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC：2 - Moderate corrosion stress
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Ambient temperature：-20 °C ... 80 °C
Impact energy in end positions：0.5 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke：724 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke：724 N
alternative connections：See product drawing
Pneumatic connection：G1/8
Material cover：Wrought aluminium alloy
Material seals：NBR
Material housing：Wrought aluminium alloy
Material piston rod：High-alloy stainless steel
