Festo DPA-63-16 193392 New and Original High quality

DPA-63-16 193392

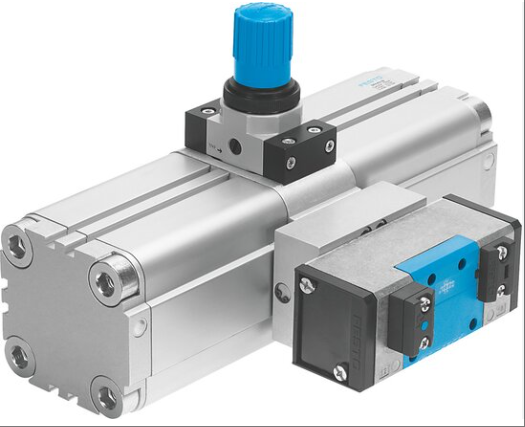

The DPA-63-16 193392 model product is a high-performance dual piston air boost valve designed specifically for pneumatic systems in industrial automation. Its core parameters include a cylinder diameter of 63mm, an input pressure range of 2 bar to 10 bar, and an output pressure range of 4 bar to 16 bar. The secondary side pressure is automatically established through an integrated check valve, and the output pressure can reach up to twice the input pressure. This product adopts a dual piston boosting structure and is equipped with an internal thread installation method. The working medium is filtered, unlubricated compressed air, which complies with ISO 8573-1:2010 standard and has a corrosion resistance level of CRC 2. It is suitable for ambient temperatures ranging from 5 ° C to 60 ° C. Its compact design, weighing 6000g, supports any installation position, and is widely used in pneumatic equipment that requires high pressure output, such as punch presses, pneumatic tools, and automated production lines. By increasing system pressure, it effectively reduces the overall weight and design space of the machine, significantly reducing manufacturing costs.

Technical specifcations for DPA-63-16 193392

Specification

model: DPA-63-16

Order number: 193392

Structure type: Double piston air boost valve

Gas interface: G3/8

performance parameter

Inlet pressure: 2 bar to 10 bar

Output pressure: 4 bar to 16 bar

Maximum working pressure: 10 bar

Recommended attachment: Pressure gauge component (such as DPA-63-16-MA-SET 526097)

Structure and Materials

Cylinder diameter: 63 mm

Piston material: high-strength alloy steel

Sealing material: NBR (nitrile rubber)

Protection level: IP65 (compliant with DIN EN 60529 standard)

Environment and working conditions

Working temperature range: 5 ° C to 60 ° C

Medium: filtered, unlubricated compressed air (compliant with ISO 8573-1:2010 standard)

Corrosion resistance level: CRC 2 (moderate corrosion resistance)

Size and weight

Weight: 6000 g

Installation method: Any installation position

Application and advantages

Application areas: punching machines, pneumatic tools, automated production lines, and other scenarios that require high pressure output

Advantages:

Double piston boosting design, stable output pressure

Integrated check valve ensures automatic establishment of secondary side pressure

Compact design, saving installation space

This model of product is widely used in industrial automation scenarios that require precise pressure control due to its high pressure output, high reliability, and durability.
