Festo DGST-10-10-PA New and Original High quality

DGST-10-10-PA

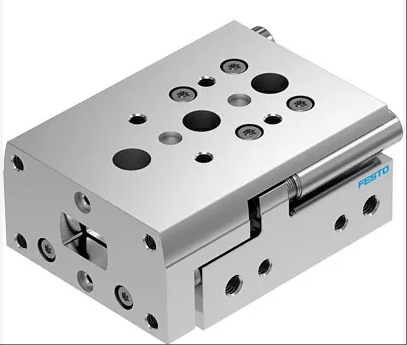

Festo DGST-10-10-PA is a small slide type cylinder designed specifically for precision automation applications. Its core features include:

Structure and Performance: Adopting a dual piston shift fork structure, combined with circulating ball bearing guide rails, to achieve high rigidity and low friction linear reciprocating motion; The stroke is 10mm, the maximum theoretical force value is 94N (at 6bar), and the repeatability accuracy is ≤ 0.3mm, meeting the requirements of precision positioning.

Buffer and detection: Both ends are equipped with elastic buffer rings/pads, and hydraulic buffers (such as DGST-Y12 model) can be optionally selected to effectively absorb impacts; Support proximity switch position detection to achieve accurate feedback of terminal position.

Installation and compatibility: Flexible installation methods, adaptable to various automation scenarios; The working medium is compressed air that complies with ISO 8573-1:2010 standard, with a working pressure range of 0.1-0.8 MPa and an ambient temperature of -10 ° C to+60 ° C.

Application areas: Widely used in electronic assembly, light machinery, grasping technology and other scenarios, such as picking and placing units, precision positioning devices and press fit systems.

This model is an ideal choice for linear motion control in automation equipment due to its compact design, high precision, and reliability

Technical specifcations for DGST-10-10-PA

model: DGST-10-10-PA

Type: Sliding table cylinder with guide rod

Cylinder diameter: 20mm (related to piston diameter)

Journey: 10mm

Installation method: fixed type (basic type)

Lubrication method: No oil supply cylinder

performance parameter

Working pressure: 0.1 MPa~1 MPa (1 bar~8 bar pressure range optional)

Maximum gas consumption: Theoretical gas consumption at 6 bar is 141 L/min (retraction stroke)

Theoretical force: not directly labeled, but the theoretical force value during the forward process at 6 bar is about 94N (refer to similar model data)

Repetition accuracy: ≤ 0.3mm

End position impact energy: 0.14 joules

Environmental temperature:- 20°C ~ +80°C

Structure and Materials

Buffer: Elastic buffer rings/pads at both ends

Piston rod thread: internal thread

Material: The cylinder barrel and piston rod are made of high alloy stainless steel, and the sealing material is NBR (nitrile rubber)

Size and weight

Dimensions: 50mm (length)

Weight: 0.5kg

Testing and Accessories

Position detection: achieved through proximity switches (such as SMT-8M-A-PS-24V-E-0.3-M8D, SMT-10M-PS-24V-E-0.3-L-M8D)

Recommended attachments:

Proximity switch (models 551375, 574334)

Unidirectional throttle valve (model GRLA-M5-QS-4-D)

Positioning sleeve (model ZBH-7-B)

Application and compatibility

Working medium: Compressed air (compliant with ISO 8573-1:2010 standard)

Application scenarios: Automation fields such as electronic assembly, lightweight machinery, and gripping technology
