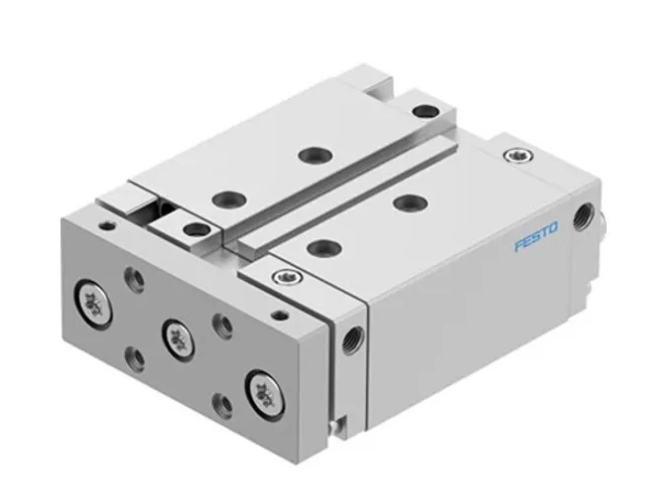

Festo DFM-32-50-B-PPV-A-KF Guided drive
Description
The Festo innovative guided drive is designed to enhance precision and efficiency in automation tasks. Combining a robust double-acting function with adjustable pneumatic cushioning, it is ideal for applications that demand reliability and adaptability. Constructed with a durable wrought aluminum alloy, the device features an exceptionally resilient high-alloy stainless steel piston rod, ensuring long-lasting performance even under varying ambient conditions. With a cleanroom class of ISO 14644-1 Class 7 and conformity to VDMA24364-B1/B2-L LABS standards, this drive is perfect for sensitive environments where cleanliness is paramount. Its flexible mounting position and diverse configuration options make it a versatile solution that meets the dynamic needs of modern manufacturing environments.
Information
Double-acting mode ensures efficient operation in both forward and return strokes
Pneumatic cushioning can be adjusted for optimal shock absorption
The recirculating ball bearing guide promotes smooth and precise movement
The proximity switch allows for reliable position detection
Corrosion resistance class CRC 0 ensures durability in harsh conditions
The drive accommodates a wide operating pressure range for versatile applications
It enables clean and efficient operation with lubricated mediums enhancing maintenance
Technical Data
- 50MM stroke
- 32 mm piston diameter
- Yoke operating mode, drive unit
- Pneumatic cushioning, adjustable at both ends cushioning
- Optional mounting position
- Recirculating ball bearing guide guide
- Guidance design
- Via proximity switch position detection
- Double-acting mode of operation
- Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
- Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
- 0 - No corrosion stress corrosion resistance class cRC
- VDMA24364-B1/B2-L lABS (PWIS) conformity
- Class 7 according to ISO 14644-1 cleanroom class
- 0.4J impact energy in end positions
- 415N theoretical force at 0.6 mPa (6 bar, 87 psi), return stroke
- 482N theoretical force at 0.6 mPa (6 bar, 87 psi), advance stroke
- See product drawing alternative connections
- Wrought aluminium alloy material cover
- NBR material seals
- Wrought aluminium alloy material housing
- High-alloy stainless steel material piston rod
- 0.15MPA to 1MPA operating pressure
- -5GC ambient temperature to 60GC ambient temperature
- Pneumatic connection g1/8
