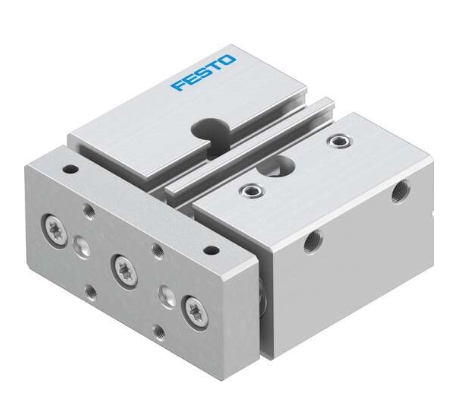

FESTO DFM-12-10-P-A-GF Guided actuator
guided drive DFM-12-10-P-A-GF With integrated guide. Centre of gravity distancefrom working load to yoke plate=25 mm, Stroke=10 mm, Piston diameter=12 mm,Operating mode of drive unit=Yoke, Cushioning=P: Flexible cushioning rings/plates atboth ends
Information：
Manufacturer Nr.: DFM-12-10-P-A-GF
Manufacturer: Festo
Technical Data：
Distance from centre of gravity of load to yoke plate xs：25 mm
Stroke：10 mm
Piston diameter：12 mm
Operating mode, drive unit：Yoke
Cushioning：Elastic cushioning rings/plates at both ends
Mounting position：optional
Guide：Plain-bearing guide
Design：Guidance
Position detection：Via proximity switch
Symbol：00991737
Operating pressure：0.2 MPa ... 1 MPa
Operating pressure：2 bar ... 10 bar
Max. speed：0.8 m/s
Mode of operation：Double-acting
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC：1 - Low corrosion stress
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Ambient temperature：-20 °C ... 80 °C
Impact energy in end positions：0.07 J
Max. force Fy：240 N
Max. force Fy static： 240 N
Max. force Fz：240 N
Max. force Fz static：240 N
Max. moment Mx：4.92 Nm
Max. torque Mx static：4.92 Nm
Max. moment My：2.06 Nm
Max. torque My static：2.06 Nm
Max. permissible torque load Mx as a function of stroke：0.92 Nm
Max. effective load dependent upon stroke at defined distance xs：29 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke：51 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke：68 N
Moving mass：172 g
Product weight：344 g
alternative connections：See product drawing
Pneumatic connection：M5
Note on materials：RoHS-compliant
Material cover：Wrought aluminium alloy
Material seals：NBR
Material housing：Wrought aluminium alloy
Material piston rod：High-alloy stainless steel
