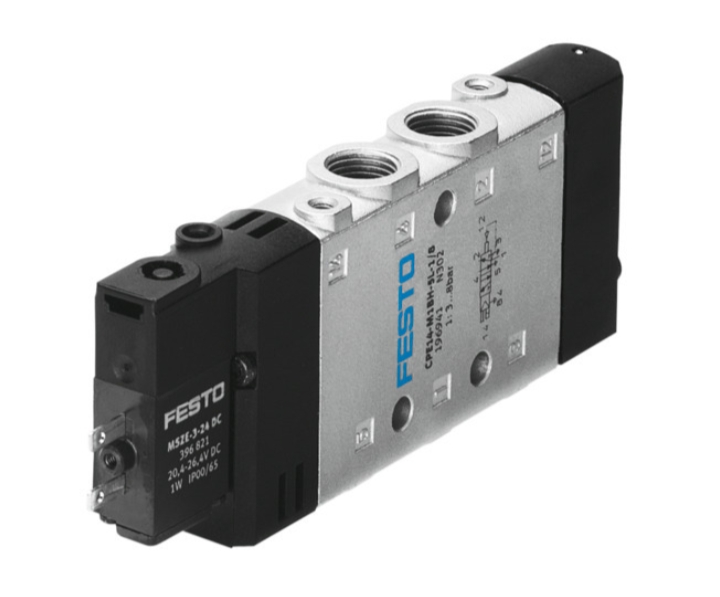

Festo CPE14-M1BH-5L-1/8 196941 Solenoid valve Brand new

Festo CPE14-M1BH-5L-1/8 196941 Solenoid valve

Description

The FESTO CPE series of universal solenoid valves offer the maximum flow rate with minimum installation space, featuring high performance valves with a long service life. The CPE range is ideal for applications in optimised process sequences and working cycles.

Information

• The solenoid valves have a service life of 100 million operating cycles and can withstand tough operating conditions
• The short tubing lengths allow for faster switching and short reaction times, with switching times as low as 12ms
• The FESTO CPE series offer a more economical operation, with low heat generation and low electrical power consumption of 1 or 1.5 watts.
• Pressure range of 0.9-10 bar
• A soft-seal cartridge principle results in lower leakage rates
• The product can operate as an individual valve and can also be mounted on a sturdy aluminium manifold
• Unused valve positions have the option to be covered by a blanking plate, facilitating expansion when desired
• The series offers a wide choice of electrical connections using numerous sockets, with or without cables
• Suitable for operation with unlubricated compressed air
• The valve allows for both internal and external pilot air supply, making it suitable for a vacuum
• High flow rates offer pneumatic efficiency

Technical Data

Valve function：5/2-way, monostable

Type of actuation：Electric

Construction width：14 mm

Standard nominal flow rate (standardised to DIN 1343)：800 l/min

pneumatic working port：G1/8

Operating voltage：24V DC

Operating pressure：0.3 MPa ... 0.8 MPa

Operating pressure：3 bar ... 8 bar

Design：Piston gate valve

Type of reset：Pneumatic spring

Approval：c UL us - Recognized (OL)

Maritime classification：See certificate

Certificate issuing authority：DNV-TAA000032X

UL MH19482Degree of protection：IP65

With plug socket：To IEC 60529

Nominal size：6 mm

Exhaust-air function：With flow control option

Sealing principle：Soft

Mounting position：optional

Manual override：Detenting via accessory  Non-detenting

Type of piloting：Pilot actuated

Pilot air supply：Internal

Flow direction：Non-reversible

Symbol：00991023

Valve position code：Inscription label holder

lap：Overlap

Switching time off：32 ms

Switching time on：24 ms

Duty cycle：100% in conjunction with holding current reduction

Max. positive test pulse with 0 signal：1200 µs

Max. negative test pulse with 1 signal：900 µs

Characteristic coil data：24 V DC: 1.28 W

Permissible voltage fluctuations：-15%/+10%

Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)

Vibration resistance：Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance：Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC：2 - Moderate corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Media temperature：-5 °C ... 50 °C

Ambient temperature：-5 °C ... 50 °C

Product weight：95 g

Electrical connection：2-pin

Type of mounting：With through-hole

Pilot exhaust port 82：M3

Pilot exhaust port 84：M3

Pilot air port 12：M3

Pilot air port 14：M3

Pneumatic connection, port 1：G1/8

Pneumatic connection, port 2：G1/8

Pneumatic connection, port 3：G1/8

Pneumatic connection, port 4：G1/8

Pneumatic connection, port 5：G1/8

Note on materials：RoHS-compliant

Material seals：NBR

Material housing：Die-cast aluminium
