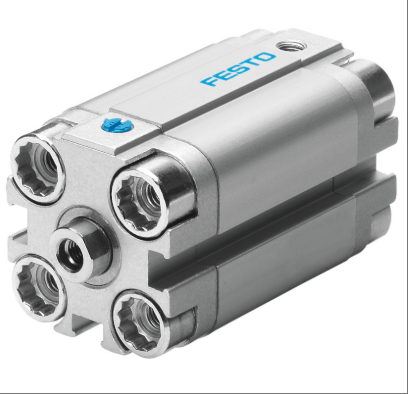

156529 ADVU-25-50-P-A
Specification parameters:
Cylinder diameter: 25 mm
Travel distance: 50 mm
Interface form: P-type (compliant with ISO standards)
Installation method: can be installed at any position
Performance advantages:
Optimize space design: Compact structure, save installation space, adapt to narrow working conditions;
High efficiency performance: achieving improved production efficiency and extending the service life of cylinders and machines;
Low vibration and low noise: reduce vibration and impact, lower operating noise, and improve working environment comfort.
Application scenarios:
Suitable for automated production lines, pneumatic control systems, and precision equipment, providing stable and reliable power output.
This model has become a key actuator in industrial pneumatic systems with high precision, high reliability, and flexible installation methods.
Technical specifcations for 156529 ADVU-25-50-P-A
Model and identification
model: ADVU-25-50-P-A
Product Code: 156529
Brand: FESTO (Festo, Germany)
Specification parameters
Cylinder diameter: 25 mm
Travel distance: 50 mm
Working mode: Dual action
Built in magnetic ring: available
Piston rod thread: M5
Diameter of takeover: M5
Buffer method: Elastic buffer rings/pads at both ends
performance parameter
Theoretical force value at 6 bar (forward stroke): 295 N
Working medium: dry compressed air or lubricated compressed air
Working temperature range:- 5 ° C to 50 ° C
Protection level: IP65
Installation and Configuration
Installation form: can be installed at any position
Recommended attachments: flange mounting parts (such as FUA-25), tripod mounting parts (such as HUA-25), threaded joints, proximity sensors, etc
Materials and Characteristics
Shell material: Aluminum alloy
Piston rod material: stainless steel
Sealing material: NBR (nitrile rubber)
application area
Suitable for fields such as automated production lines, pneumatic control systems, precision equipment, and industrial robots, providing stable and reliable power output.
