Festo 10P-10-8A-MP-R-B-8M+R-E New and Original High quality

10P-10-8A-MP-R-B-8M+R-E

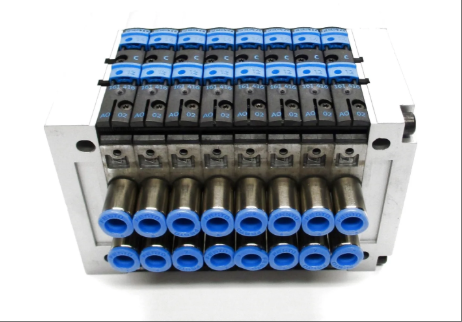

The Festo brand model 10P-10-8A-MP-R-B-8M+R-E is a high-performance valve terminal designed specifically for industrial automation and pneumatic control systems. This product integrates multiple solenoid valve units and achieves a compact layout through modular design. It supports multi pin plug interfaces and can drive up to 35 solenoid coils, flexibly allocating valve position resources to meet complex pneumatic control requirements.

The product has a high protection level (such as IP65), adapts to harsh industrial environments, supports fieldbus (such as PROFINET, EtherCAT) and IO Link communication protocols, and achieves real-time data exchange with the upper computer. The valve body is made of corrosion-resistant metal or engineering plastic material to ensure long-term stable operation, while supporting quick replacement of valve plates to reduce maintenance costs.

This model of valve island is widely used in automated production lines such as automobile manufacturing, electronic assembly, and packaging machinery. Through centralized gas supply and electrical control, it significantly improves system response speed and control accuracy, helping enterprises achieve efficient and intelligent production management.

Technical specifcations for 10P-10-8A-MP-R-B-8M+R-E

Electrical characteristics

Voltage range: 12V/24V DC (± 10%/-15%), 110V/230V AC (± 10%/-15%)

Power consumption: DC voltage 1.8W, AC voltage 2.1VA (110V/230V), 2.3VA (24V)

Protection level: IP65 (combined with plug)

CE certification: compliant with the 73/23/EEC Low Voltage Directive

Pneumatic characteristics

Working medium: filtered compressed air (40 μ m filtration grade), supporting lubricating or non lubricating media

Working pressure: internal pilot air, pneumatic spring reset pressure range 2-10 bar, mechanical spring reset pressure range 3-10 bar

Environmental temperature: - 5 ° C to+50 ° C

Medium temperature: - 5 ° C to+50 ° C

Fire rating: UL94 HB

Structure and function

Valve Island Configuration: Integrated with 2x 3/2-way valves, including 1 normally closed (N) and 1 normally open (F) valve position, supporting reverse operation (pressure supply ports 3 and 5, exhaust through port 1)

Corrosion Protection: Meets Festo Standard 940 070 Level 2 Corrosion Resistance

Modular design: Each valve position can be equipped with valve plates, power modules, or blind plates, and dual electric control valves occupy two valve positions

Connection and Communication

Electrical connection: Square plug (DIN EN 175301-803, Type C), 12V/24V DC/AC without protective grounding, 110V/230V AC with protective grounding

Communication interface: Supports protocols such as fieldbus, IO Link, I-Port, etc

Environment and Performance

Environmental temperature: - 5 ° C to+50 ° C

Medium temperature: - 5 ° C to+50 ° C

Flow range: not directly provided, but similar products can reach a flow rate of 600-1300 l/min

mechanical properties

Material: Corrosion resistant plastic or metal (specific material needs to be selected according to the application)

Size and weight: not directly provided, but similar models have a width of 10-18mm and a weight of approximately 1-6kg

other characteristics

Pilot pressure: pneumatic spring reset 2-10 bar, mechanical spring reset 3-10 bar

Valve function: Supports two position three normally open/closed, two position five way single electric control, and dual electric control

Compatibility: Can be connected to FESTO's CPX valve island electrical terminal through CP interface
