In the modern industrial sector, inverters serve as the core equipment for motor control, playing a crucial role in enhancing production efficiency, optimizing energy utilization, and ensuring stable equipment operation. Schneider Electric's ATV320 series inverters have become a popular choice in the market due to their exceptional performance, flexible programming capabilities, and wide range of applications.

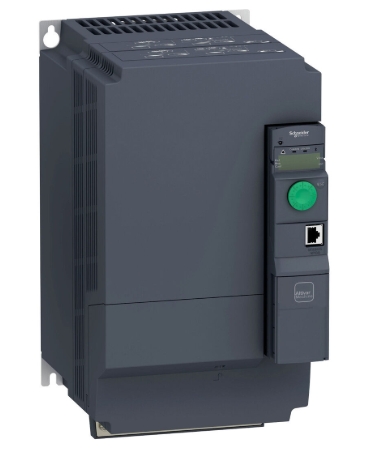

Data Parameters of ATV320D11N4C Model

ATV320D11N4C is a high-performance inverter within the ATV320 series, specifically designed for industrial applications. Here are its main data parameters:

• Brand: Schneider
• Rated Power: 11kW
• Rated Voltage: AC380-460V (three-phase)
• Power Supply Phase: 3-phase
• Product Certification: CCCC Certification
• Installation Method: Fixed
• Dimensions: H186mm x D158mm x W126mm
• Color: Black
• Operating Environment: Automatic switching of spare parts
• Operation Mode: V/F Open-loop Control
• Output Voltage Regulation Mode: PWM Control
• Operating Temperature: Below 99°C
• Switch Panel Size: 22mm x 15mm x 8mm
• Control Mode: Electric Control
• Wiring Method: Front Panel Wiring
• Weight: 15kg
• Filter: Built-in C3 Level EMC Filter
• Incoming Line Method: Rear Entry
• Segmenting Capacity: 65KA
• Controller Model: M Intelligent Type
• Allowable Short-time Overload: 300% for 3 seconds
• Leakage Action Time: Details in the manual
• Communication Port Protocol: Supports Modbus, CANopen, and other communication protocols

Features of ATV320 Series

1. Built-in Safety Functions: The ATV320 series inverters are equipped with safety functions such as Safe Torque Off Input (STO), Safe Limited Speed (SLS), and Safe Stop 1 (SS1), ensuring safety and reliability during equipment operation.
2. Comprehensive Programming Capabilities: With the Somove software, users can easily program the ATV320 series inverters and access all their variables without the need for external devices. The programming function includes arithmetic functions, Boolean operations, counters, and timer function blocks, meeting various complex control requirements.
3. Rich Human-Machine Interface: The ATV320 series inverters provide an intuitive human-machine interface, allowing users to easily set parameters and monitor the system. Additionally, they support parameter setting through the inverter's own panel and external Chinese or English panels, providing convenience and efficiency.
4. High-Performance Motor Control: Utilizing advanced control algorithms and efficient power electronics technology, the ATV320 series inverters offer precise speed control and stable operation, suitable for various industrial applications.
5. Wide Range of Applications: The ATV320 series inverters are widely used in manufacturing, water treatment, HVAC, mine winches, injection molding machines, machine tools, metallurgy, explosion-proof products, municipal engineering, lifting equipment, and other fields, providing users with reliable and efficient motor control solutions.

Application Fields and Scope

As a high-performance inverter in the ATV320 series, the ATV320D11N4C model has a wide range of application fields and scopes:

1. Manufacturing: Controls motors on production lines to achieve precise speed regulation and energy-saving operation, improving production efficiency.
2. Water Treatment: Controls the operation of pumps to ensure the stability and efficiency of water systems, meeting various water treatment needs.
3. HVAC: In air conditioning systems, precise control of motor speed enables accurate temperature and humidity regulation, improving system energy efficiency and comfort.
4. Mine Winches: Provides reliable power control to ensure the safe operation and efficient performance of mine winches.
5. Injection Molding Machines: Controls the motor operation of injection molding machines to achieve precise speed and pressure control, improving the quality and production efficiency of injection molded products.
6. Machine Tools: During machining processes, precise control of motor speed and torque enables high-precision processing and stable operation.
7. Metallurgy: In the metallurgical industry, ATV320D11N4C can control the motor operation of various metallurgical equipment, improving production efficiency and product quality.
8. Explosion-Proof Products: The ATV320 series inverters meet explosion-proof standards and can be used in various explosion-proof situations to ensure the safe operation of equipment.
9. Municipal Engineering: In municipal engineering, ATV320D11N4C can control the motor operation of various municipal equipment such as water supply, drainage, and street lights, improving the operational efficiency and stability of municipal facilities.
10. Lifting Equipment: In lifting equipment, ATV320D11N4C can precisely control motor speed and torque, ensuring stable operation and safe operation of lifting equipment.

Product website:

https://www.3splc.com/ATV320_c0_ss

Schneider ATV320 series inverters have become leaders in the field of industrial automation due to their exceptional performance, flexible programming capabilities, and wide range of applications. As a representative product in this series, ATV320D11N4C has won widespread recognition in the market with its outstanding data parameters and practical application effects. Whether in manufacturing, water treatment, HVAC, or other industrial fields, ATV320D11N4C provides reliable and efficient motor control solutions, helping enterprises achieve digital transformation and intelligent upgrades.
