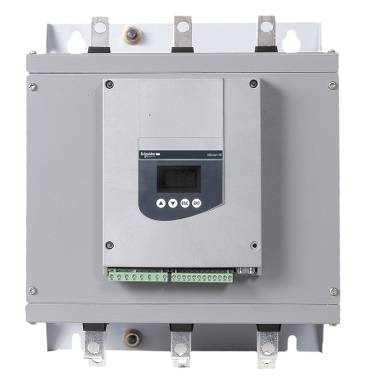

Schneider ATS48C25Q Soft Starter: An Innovative Choice for Industrial Motor Control

In the field of industrial automation, as the core equipment for motor control, the performance and reliability of soft starters directly affect the efficiency and stability of production lines. As an expert in global energy efficiency management, Schneider Electric's ATS48C25Q soft starter has become the first choice for many industrial users due to its excellent technical parameters and wide range of application scenarios. This article will delve into the key parameters, technical advantages, and typical applications of this product, providing comprehensive references for engineers and procurement personnel.

1、 Detailed explanation of core product parameters

1. Electrical specifications

Rated current: 250A (at 400V), can adapt to a wide range of motor power.

Adaptive motor power:

Under 400V voltage, it supports 110kW (harsh application)/132kW (standard application) when connecting the motor power line; When connecting triangular terminals, it can reach 160kW (for harsh applications)/220kW (for standard applications).

At 230V voltage, the power line connection supports 55kW (harsh applications)/75kW (standard applications); The triangular terminal connection can reach 110kW (for harsh applications)/110kW (for standard applications).

Power supply voltage range: 230... 415V (-15%~+10%), compatible with 50/60Hz frequency, suitable for different global power grid environments.

Control circuit voltage: 220V (-15%~+10%), 50/60Hz, ensuring stable transmission of control signals.

2. Performance parameters

Starting method: Torque control (TCS patented technology), current limited within 5 times the rated value, achieving smooth acceleration.

Protection function:

Motor thermal protection and mechanical protection (underload, overload, rotor stalling, steering monitoring).

Phase loss protection and voltage fluctuation tolerance (conducted/radiated interference in accordance with IEC 60947-4-2A).

Communication capability: Integrated with protocols such as Modbus, Profibus DP, DeviceNet, Ethernet, etc., supporting Industry 4.0 data exchange.

3. Physical characteristics

Size and weight: 380mm (height) x 320mm (width) x 265mm (depth), weight 18.2kg, compact design for easy cabinet integration.

Environmental adaptability:

Operating temperature: -10~40 ℃ (without capacity reduction), storage temperature: -25~70 ℃.

Altitude adaptation: No derating for ≤ 1000m, and a 2.2% derating for every 100m increase in current when exceeding 1000m.

Protection level: IP00, requires coordination with the cabinet to achieve higher protection.

2、 Technological advantages and innovation points

1. Torque Control System (TCS)

Schneider's patented TCS technology achieves the following breakthroughs through precise control of motor torque:

Smooth start: reduces mechanical impact and extends the lifespan of motors and transmission equipment.

Heavy load adaptation: Supports smooth start-up of high inertia loads such as centrifuges and compressors.

Energy saving and consumption reduction: Reduce the peak starting current, avoid voltage drops in the power grid, and reduce the demand for distribution capacity.

2. Dual configuration and cascading control

Dual parameter setting: can store two sets of motor parameters to adapt to different working conditions switching.

Multi machine cascading: supports the collaborative work of multiple soft starters to achieve sequential starting of large motor groups and avoid power grid overload.

3. Intelligence and usability

Integrated display and software: Quickly set parameters through PowerSuite software or local display screen to simplify the debugging process.

Bypass contactor control: automatically switches to bypass mode after starting, reducing the heat generated by the soft starter and improving energy efficiency.

3、 Typical application scenarios

1. Pump equipment

Application case: In the municipal water supply system, ATS48C25Q controls high-power water pumps, eliminates water hammer effects through soft start, and protects pipelines and valves.

Advantages: Torque control ensures smooth acceleration of the water pump, reduces the risk of motor overload, and extends equipment maintenance cycles.

2. Fan and compressor

Application case: In the ventilation system of a chemical plant, a soft starter controls the high-voltage fan to avoid current shock and mechanical vibration caused by direct starting.

Advantages: TCS technology optimizes starting torque, adapts to the inertia characteristics of fan loads, and reduces energy consumption.

3. Conveyor and transmission system

Application case: The belt conveyor in the logistics sorting center is controlled in cascade by multiple ATS48C25Q units to achieve sequential start-up and synchronous operation of the conveyor belt.

Advantages: Cascade function simplifies control logic, improves system reliability, and reduces downtime due to failures.

4、 Selection and procurement suggestions

1. Key selection points

Load type: Confirm that the motor is a three-phase squirrel cage asynchronous motor, and adjust the parameters according to the load characteristics (constant torque/variable torque).

Voltage matching: Check the grid voltage and the rated voltage range of the soft starter to avoid overvoltage/undervoltage operation.

Protection requirements: Select additional protection functions (such as explosion-proof and high-temperature adaptation) based on the industrial environment.

2. Market competition comparison

Differences from the ATS22 series: The ATS48C25Q supports higher power (132kW vs. ATS22's 400kW upper limit), but has a more compact size, making it suitable for space constrained scenarios.

Compared with ABB PSE series, Schneider products have more advantages in communication protocol compatibility (such as Ethernet) and cascade control function.

Schneider ATS48C25Q soft starter has become a benchmark product in the field of industrial motor control due to its precise torque control, comprehensive protection functions, and intelligent communication capabilities. Whether it is pumps, fans or transmission systems, it can provide stable and efficient starting solutions, helping enterprises reduce operation and maintenance costs and improve production efficiency. For industrial users who pursue reliable equipment performance and long-term benefits, the ATS48C25Q is undoubtedly a trustworthy choice.
