Core Product Specifications

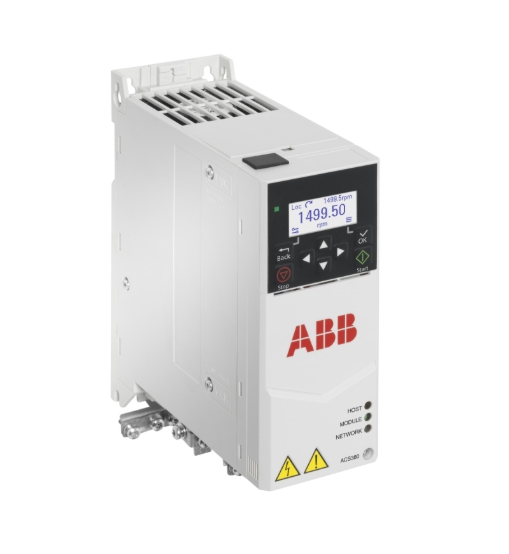

• Model: ACS380-040S-06A9-1
• Input Voltage: Single-phase AC 200V–240V (50/60Hz)
• Rated Power: 1.1kW (adaptive for light/heavy load modes)
• Compatible Motor Power: 1.1kW (supports asynchronous motors)
• Output Current: 6.9A (light load) / 4.8A (heavy load)
• Control Modes: V/F control, vector control (switchable torque mode)
• Protection Rating: IP20 (suitable for indoor environments)
• Communication: Built-in Modbus RTU (EIA-485 protocol)
• Protection Features: Overvoltage/undervoltage protection, overload protection, short-circuit protection, motor dynamic parameter self-identification
• Dimensions: Compact design (approx. 116mm × 139mm × 89mm)

Key Advantages

1. Energy Efficiency: Dual DC chokes reduce energy loss by 20%, lowering operational costs.
2. Precision Control: Supports dual-mode (speed/torque) switching with stable low-speed torque output (180% rated torque).
3. Space-Saving Design: IP20 rating fits confined installations, simplifying wiring.
4. Smart Protection: Instant power failure restart, stall prevention, and fault diagnostics ensure uninterrupted operation.

Application Scope

• Constant Pressure Water Supply: Stabilizes pipeline pressure for pumps.
• Fans & Pumps: Controls cooling fans, pipeline cleaning, and multi-pump coordination.
• Material Handling: Logistics sorting lines, packaging machinery, printing press paper feed systems.
• Light Industry Machinery: Textile machines, rubber extruders, plastic injection molding.
• Food & Beverage: Low-speed stable mixing, CIP cleaning pumps, bottle conveyor speed control.

Target Industries

1. Food & Beverage: Mixer low-speed operation, CIP cleaning pump control, bottling line conveyor adjustments.
2. Logistics & Warehousing: Automated stacker cranes, high-speed sorting machine start/stop control.
3. Textile & Dyeing: Loom spindle drives, dye vat tension control.
4. Water Treatment: Sewage pump station level control.
5. Building Materials: Concrete batching systems, tile production line dryer fan speed control.
