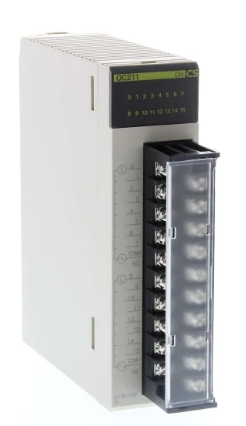

In industrial automation control systems, the Programmable Logic Controller (PLC) serves as the core control device, with its performance stability and functional richness directly impacting the efficiency and quality of the entire production system. OMRON, a globally renowned manufacturer of automation control products, has garnered significant favor among industrial users with its CS1 series PLCs, thanks to their exceptional performance and broad applications. Among them, the CS1W-OD211 transistor output unit, as a crucial expansion module within this series, has become an indispensable part of the industrial automation landscape due to its outstanding parameter configurations, unique features, and extensive application domains.

Key Parameters and Data

The OMRON CS1W-OD211 transistor output unit is an expansion module specifically designed for industrial automation control, featuring the following key parameters and data:

• Output Points: 16, meeting the output requirements of small-to-medium-sized automation control systems.
• Switching Capacity: Supports DC12～24V, 0.5A load current, suitable for driving various DC loads.
• Output Type: Transistor output, sink type, offering advantages such as contactless operation, fast response speed, and long service life.
• Power Supply Voltage: DC24V (DC20.4～28.8V), with a wide voltage input range to accommodate different power conditions in industrial environments.
• Current Consumption: Maximum 200mA (DC5V), low-power design to reduce overall system energy consumption.
• Protection Rating: IP33, providing certain dust and water resistance capabilities to adapt to harsh industrial environments.
• Certification Standards: CE, cULus, Lloyd, NK, and other international certifications ensuring product safety and reliability.

Feature Analysis

1.High Reliability

The CS1W-OD211 is manufactured using modern large-scale integrated circuit technology and rigorous production processes, with advanced anti-interference techniques employed in its internal circuitry, ensuring high reliability. Some PLCs with redundant CPUs have even longer mean time between failures (MTBF). From the perspective of external PLC circuitry, using PLCs to form control systems significantly reduces failure rates compared to relay-contactor systems of similar scale. In the event of a failure, alarm information can be promptly issued, providing fault self-diagnosis protection for circuits and equipment in the system beyond the PLC.

2.Efficient Space Utilization

By installing multiple basic I/O units onto the CPU device, the CS1W-OD211 achieves efficient space utilization. For example, installing 10 basic I/O units (each with 96 I/O points) onto the CPU device enables control of up to 960 I/O points. Additionally, by combining analog input and output units, up to 80 analog I/O points can be controlled, meeting the demands of complex industrial control systems.

3.Optimized Data Refresh Performance

With the aid of the DLNK instruction in the new CS1 series PLC, the CS1W-OD211 can achieve immediate I/O refreshing, enhancing the refresh responsiveness of CPU bus units. During instruction execution, processes specific to CPU bus units, such as data linking and DeviceNet remote I/O communication and allocated CIO area/DM area word processes, can be immediately refreshed, ensuring data real-time accuracy.

4.Flexible Communication Interfaces

The CS1W-OD211 is equipped with two serial communication ports, RS-232C and RS-422A/485, supporting various communication protocols such as no protocol, macro protocol, 1:1 data connection, and 1:N mode NT linking. The RS-232C port has a maximum rate of 19.2kbps and a maximum distance of 15m, while the RS-422A/485 port also has a maximum rate of 19.2kbps but can reach a maximum distance of 500m, meeting the communication needs of different industrial environments.

5.Easy Installation and Maintenance

The CS1W-OD211 adopts a backplane installation method with screw terminal connections, ensuring quick and straightforward installation. Additionally, the module features fault self-diagnosis capabilities, allowing maintenance personnel to quickly locate and resolve issues with timely alarm information.

Application Domains

The OMRON CS1W-OD211 transistor output unit, with its outstanding performance and broad application adaptability, is widely used in the following fields:

• Mechanical Equipment

In mechanical equipment control systems, the CS1W-OD211 can drive various DC loads such as solenoid valves, indicator lights, and small motors, enabling automated control and status monitoring of equipment.

• Factory Automation

In factory automation production lines, the CS1W-OD211 can be combined with other I/O modules and communication modules to construct a complete automated control system. By real-time monitoring and control of production equipment operating status, production efficiency and product quality are enhanced.

• Process Control

In process control fields such as chemicals, petroleum, and pharmaceuticals, the CS1W-OD211 can control various actuators such as control valves and pumps, achieving precise control of process parameters. Additionally, through collaboration with other analog input/output modules, real-time monitoring and adjustment of process parameters such as temperature, pressure, and flow can be achieved.

• Building Automation

In building automation systems, the CS1W-OD211 can control equipment such as lighting, air conditioning, and security, enabling intelligent building management. Through communication and coordinated control with other smart devices, building comfort and safety are improved.
