Product Overview

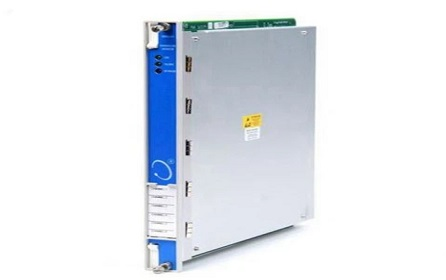

The Bently Nevada 3500/45 is a high-performance vibration monitoring module part of GE's Bently Nevada 3500 condition monitoring system. Specifically designed for continuous vibration parameter monitoring of rotating machinery.

Product Specifications

Part Number: 3500/45

Manufacturer: Bently Nevada

Series: 3500

Input Signal Range: -10 Vdc to +10 Vdc

Power Consumption: 10.5 watts

Product Type: Channel Position Monitor Module

Operating Temperature: -30°C to +65°C

Humidity Tolerance: 95%

Weight: 0.85 lbs

Dimensions: 9.50" x 4.50" x 1.00"

Availability: In Stock

Repair Service: 3-7 Day Turnaround

Country of Origin: United States

Functional Description

The Bently Nevada 3500/45 is a 4-channel Position Monitor Module designed for machinery protection and condition monitoring. It processes input signals from various sensors, including:

Proximity transducers

Rotary Position Transducers (RPTs)

DC & AC Linear Variable Differential Transformers (LVDTs)

Rotary potentiometers

Each channel can be configured via 3500 Rack Configuration Software to support multiple monitoring functions, such as:

Axial (Thrust) Position

Differential Expansion (Standard, Non-standard, Dual Ramp, Complementary)

Case Expansion

Valve Position

The module continuously compares sensor inputs against user-programmable alarm setpoints, triggering alerts when thresholds are exceeded. This ensures early detection of potential machinery failures, providing critical data for maintenance and operational decisions.

Key Features

✅ Real-Time Monitoring – Tracks channel positions continuously for immediate feedback.

✅ Programmable Alarms – Configurable alert and danger setpoints for each channel.

✅ Historical Data Logging – Stores trend data for analysis and diagnostics.

✅ Remote Access & Integration – Compatible with control systems for seamless monitoring.

✅ User-Friendly Interface – Easy configuration via dedicated software.

✅ High Reliability – Operates in harsh environments (-30°C to +65°C).

✅ Scalability – Supports expansion for additional monitoring needs.

Note: The technical parameters in this article are based on official Bently Nevada information. Actual specifications may vary depending on specific models and configurations. It is recommended to consult the latest version of the technical manual before application. All measurement accuracy data were obtained under standard laboratory conditions.
