Product Overview

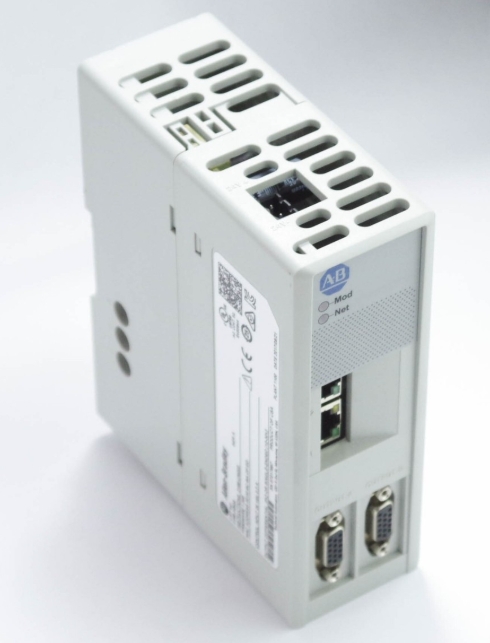

The Allen Bradley 2198-ABQE Encoder Output Simulator Module is a DIN-rail mounted, EtherNet/IP network-enabled standalone device designed to deliver precise encoder pulse signals to peripheral equipment, such as cameras in linear scanning imaging systems. Engineered for seamless integration with Logix5000 controllers and Kinetix servo drives, this module bridges physical and virtual axes in motion control systems, enhancing automation efficiency and accuracy.

Key Features

EtherNet/IP Network Integration: Supports real-time communication and synchronization across industrial networks, enabling unified control of motion axes.

Dual 15-Pin Output Connectors: Delivers high-resolution encoder pulses via PO1 and PO2 interfaces, compatible with a wide range of imaging and positioning systems.

Flexible Power Supply: Operates on 24V DC with pre-installed wiring plugs, ensuring straightforward installation and reliability.

Diagnostic LEDs: Network status, module health, and link activity indicators provide real-time operational feedback.

Compact Design: Space-efficient DIN-rail mounting with 100mm clearance above and below for optimal airflow and thermal management.

Technical Specifications

Power Input: 24V DC (pre-wired connector included).

Interfaces:

• Two RJ45 Ethernet ports (PORT1/PORT2) for EtherNet/IP connectivity.
• Dual 15-pin D-sub outputs (PO1/PO2) for encoder signal distribution.
• Physical Dimensions: 150mm (L) x 50mm (W) x 120mm (H).
• Environmental Rating: IP20 protection with operating temperatures up to 50°C.
• Certifications: Complies with EMC, LVD, RoHS, and Machinery Directives, ensuring global regulatory compliance.

Installation & Configuration

Mounting: Secure the module to a DIN rail using the integrated clamp, ensuring adjacent modules or tail anchors prevent lateral movement.

Wiring: Connect 24V DC power to the CP terminal block (torque: 0.22 N·m) and peripheral devices to PO1/PO2 outputs.

Networking: Link PORT1/PORT2 to EtherNet/IP switches or controllers for system integration.

IP Addressing: Use the pre-labeled tag to document and assign a static IP for network identification.

Applications

High-Precision Motion Control: Ideal for packaging, material handling, and assembly lines requiring synchronized encoder feedback.

Imaging Systems: Drives cameras in linear scanning applications with precise positional data.

Virtual Axis Integration: Bridges physical servo drives and software-based motion profiles in Logix5000 environments.

Advantages

Reduced Wiring Complexity: Simplifies cable management by consolidating encoder outputs and Ethernet connectivity.

Scalability: Supports multi-axis configurations and integration with Kinetix 5500/5700 drives for scalable automation solutions.

Diagnostic Transparency: LED indicators and EtherNet/IP diagnostics streamline troubleshooting and maintenance.

Compatibility

Works seamlessly with Kinetix servo drives, GuardLogix safety controllers, and CompactLogix PACs.

Supports Ethernet topologies (linear, ring, star) for flexible network design.
