ABB IMSED01 digital input module: a reliable choice in the field of industrial automation

In the field of industrial automation, ABB Group continues to launch high-performance product solutions with its profound technological accumulation and innovation capabilities. Among them, the IMSED01 digital input module, as the core component of the Symphony Plus I/O HR series, is widely used in fields such as power, manufacturing, and process industries due to its excellent reliability and flexibility. This article will delve into the technical parameters, functional features, and typical application scenarios of this product.

1、 Product Overview: Positioning and Core Advantages

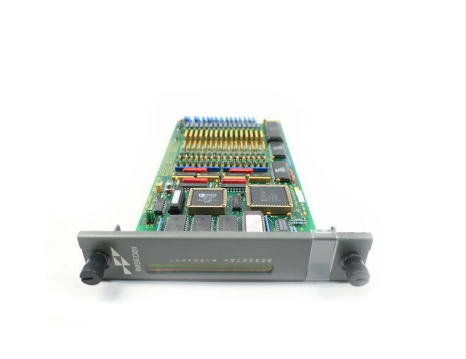

IMSED01 is a 16 channel digital input module designed specifically for industrial automation environments. It belongs to the ABB Symphony Plus I/O HR series and is compatible with Symphony Plus Process Leitsystem (PLS) controllers. Its core positioning lies in:

High density input: Supports 16 channels of digital signal access, suitable for scenarios that require centralized monitoring of the status of multiple devices.

Flexible configuration: Each channel can be independently configured to trigger "high level" or "low level", and supports filtering function (such as 17ms jitter filtering), effectively suppressing signal interference.

Industrial grade reliability: Installed with DIN rails, suitable for compact layout of control cabinets, LED indicator lights provide real-time feedback on channel status, ensuring intuitive and efficient operation and maintenance.

2、 Detailed explanation of technical parameters

1. Electrical parameters

Input voltage: Supports 24VDC or 48VDC signals, compatible with common industrial power standards.

Channel configuration:

Each channel is independently configured as "Active High" or "Active Low".

Filtering options: 17ms jitter filtering, suitable for scenarios such as mechanical switches and sensors that are prone to noise generation.

Power consumption: Typical low power consumption, specific values need to refer to the official data sheet.

2. Physical characteristics

Installation method: DIN rail installation, compact size (about 36cm x 27cm x 7cm), weight about 0.5kg, easy to integrate into the control cabinet.

Environmental adaptability:

Operating temperature: -20 ℃ to+60 ℃ (typical industrial grade range).

Protection level: IP20 (for use inside standard control cabinets).

3. Communication and compatibility

Bus interface: Communicate with Symphony Plus PLS controller through HR bus to ensure high-speed and stable data transmission.

Series compatibility: Belonging to the Symphony Plus I/O HR series, it can seamlessly integrate with other ABB modules (such as analog input/output modules) to build a complete automation solution.

3、 Functional Features and Innovative Design

1. Signal processing and diagnosis

Multi level filtering: Built in configurable filters effectively suppress false triggering caused by electromagnetic interference (EMI) and mechanical vibration.

LED status indication: Each channel is equipped with an independent LED, which displays the real-time input signal status (active/inactive), simplifying troubleshooting.

2. Flexibility and Scalability

Modular design: Supports hot swapping, allowing for module replacement without interrupting system operation and improving maintenance efficiency.

Address configuration: Set the module address (0-63) through an 8-bit binary dip switch for unique identification in large systems.

3. Safety and Compliance

Certification standards: Compliant with international safety certifications such as CE and UL, suitable for the global market.

Redundant design: Key circuits are configured with redundancy to ensure stable system operation in the event of a single point of failure.

4、 Typical application scenarios

The IMSED01 module stands out in the following scenarios due to its high performance and flexibility:

1. Power industry:

Monitor the status of substation switches and protection relay signals.

Integrated into a distributed control system (DCS) to achieve centralized monitoring of power plant equipment.

2. Manufacturing industry:

In automated production lines, monitor sensor signals (such as photoelectric switches, proximity switches).

Cooperate with PLC to achieve precise control of the production process.

3. Process industry:

Monitor key process parameters such as valve status and liquid level switches in the fields of petrochemicals, pharmaceuticals, etc.

Integrated into Safety Instrumented Systems (SIS) to enhance process safety.

5、 Market supply and prices

Supply situation: Some suppliers provide spot goods and promise to ship within 1 day after the buyer makes payment.

Price reference: The market quotation is about 6500 yuan per unit (the specific price may vary depending on the supplier and purchase quantity).

The ABB IMSED01 digital input module has the core advantages of high channel density, flexible configuration, and industrial grade reliability, combined with the powerful integration capability of the Symphony Plus system, providing users with efficient and stable automation solutions. Whether it is a new project or a system upgrade, IMSED01 can become a reliable node in industrial automation control networks, helping enterprises improve production efficiency and reduce operation and maintenance costs.
