Allen Bradley 2711P-T10C22D8S PanelView Plus 7 Standard 10 Terminal Brand new

Allen Bradley 2711P-T10C22D8S PanelView Plus 7 Standard 10 Terminal

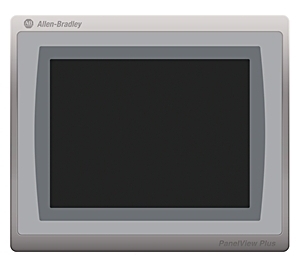

The Allen-Bradley 2711P-T10C22D8S is an Allen-Bradley PanelView Plus 7 1000 Operator Terminal. This is a standard operator terminal is powered by an external 18-30VDC supply voltage and has a 10.4-inch colored display with embedded One (1) Ethernet and Two (2) USB communication ports. This operator terminal has a touchscreen input interface.

Technical specifications for 2711P-T10C22D8S

Manufacturer：Rockwell Automation

Display Size：10.4 inches

Part Number/Catalog No.：2711P-T10C22D8S

Brand：Allen-Bradley

Product Family：PanelView Plus 7 Graphic Terminals

Product Type：PanelView Plus 7 1000

Operator Input：Touch

Touch screen：Analog resistive touchscreen

Actuation rating：1 million presses

Operating force：100 grams

Display Type：Color Active Matrix TFT LCD

Display Area：211 x 158 mm (8.31 x 6.22)

Resolution：800 x 600 SVGA, 18-Bit

Backlight：CCFL 50,000 hours life, minimum

Application memory：512 MB RAM and 512 MB storage; User memory 80 MB

Communication ports：(2) USB; (1) RS232; (2) Ethernet

Input Voltage range：18-30VDC

Product Line：Panelview Plus 7

Input Type：Touchscreen

Display Color：TFT Color Display

Memory：512 Mb

Input Voltage：24 VDC

Backlight：LED

Weight：5.03 LBS

Description:

The Allen-Bradley 2711P-T10C22D8S is a Human Machine Interface (HMI) component. This electronic device is part of the modern and active graphic operator terminal product of Rockwell Automation. This HMI is provided with modern design, having an 18-bit colored display screen, dual Ethernet switch acting as an embedded switch that supports linear, star and Device Level Ring (DLR) topologies. Aside form the communication ports, the 2711P-T10C22D8S has USB ports used for connecting external peripherals such as mouse, keyboard and printer. It also comes with a Secure Digital (SD) card for insertion of external storage for memory expansion.

The 2711P-T10C22D8S terminal uses 512 MB of RAM which is a non-volatile memory unit. The panel can operate with shocks of up to 15 G for 11 milliseconds. It can also withstand shocks of up to 30 G for 11 milliseconds when it is not under operation. The panel can be used at an altitude of up to 2000 meters above sea level without getting derated. The heat dissipation rating in the panel is 68 BTU per hour. The display panel has an aspect ratio of 4:3. The 2711P-T10C22D8S terminal is an analog-resistive touchscreen and it comes with an actuation rating of 1 million presses. The rated operating force for the touchscreen is 100 G. It helps the operators to install, configure, and operate the PanelView terminal.
