Allen Bradley 1734-IB8S 8 Channel Sfty Sinking Inp Mod PN-25132 Brand new

Allen Bradley 1734-IB8S 8 Channel Sfty Sinking Inp Mod PN-25132

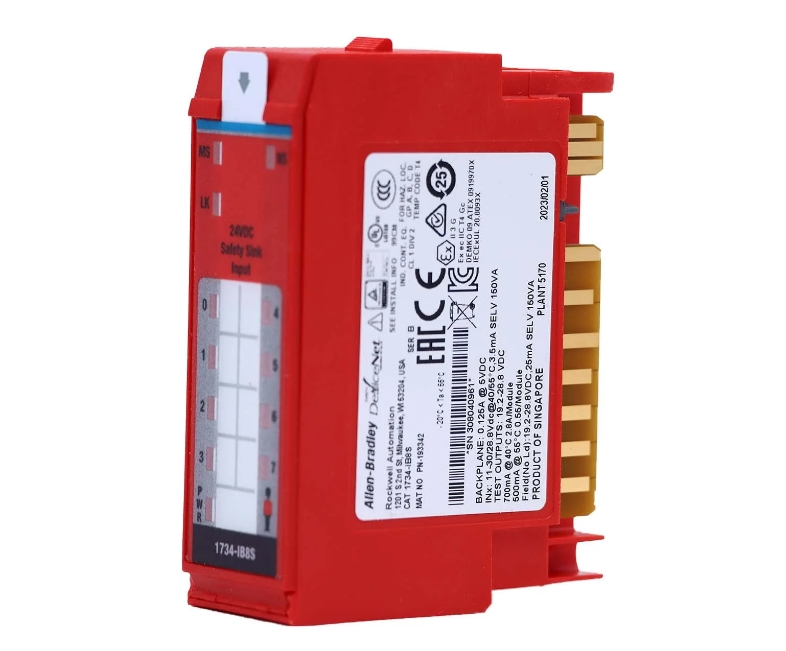

The 1734-IB8S is an Allen-Bradley manufactured module used in applications with Safety Instrumentation Level (SIL) requirements. This module is a POINT Guard IO Safety module with Eight (8) Current Sinking Input Channel and Four (4) pulse Current Sourcing Pulse Test Outputs.

Technical Specifications

Description:

The 1734-IB8S has a maximum thermal dissipation of 11.62 BTU/hour and it weighs 62.4 grams or 2.2 ounces. It has a nominal input voltage of 24 Volts DC, an input current maximum of 175 mA, and a 3.4 W maximum power dissipation. The 1734-IB8S works with SmartGuard, GuardLogix, and Compact GuardLogix controllers and it is used in POINT I/O platforms to administer CIP safety protocol extensions. The 1734-IB8S operates at 19.2 to 28.8 Volts DC. It also has a maximum power bus current (no load) of 25 mA, and a continuous isolation voltage of 50 Volts.

Our Services:

1、All our products are new and original, and of good quality.

2、Our prices are very competitive.

3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
