Allen Bradley 1734-0B8S 8 Channel Safety Sourcing Output Module Brand new

Allen Bradley 1734-0B8S 8 Channel Safety Sourcing Output Module

The Allen-Bradley 1734-OB8S POINT Safety Output Module has solid-state outputs and comes in 2 series (A and B.) It has a dual-channel mode that will control any redundancy using 2 output signals. The Allen-Bradley 1734-OB8S Series has Eight (8) Current sourcing outputs per module. The 1734-OB8S output has an output current of 1A per channel. Its pulse width is 475 micro/s with a pulse period of 575 milliseconds. It has a maximum field capacitance limit per output of 950 nF. Its voltage drop reaches 0.165 Volts and it has a current leakage of 0.1 mA at most. The 1734-OB8S has short-circuited detection with a category of short, high, low, and cross-circuit fault detection. The short-circuit is electronically protected and its output can aggregate a current of 8A.

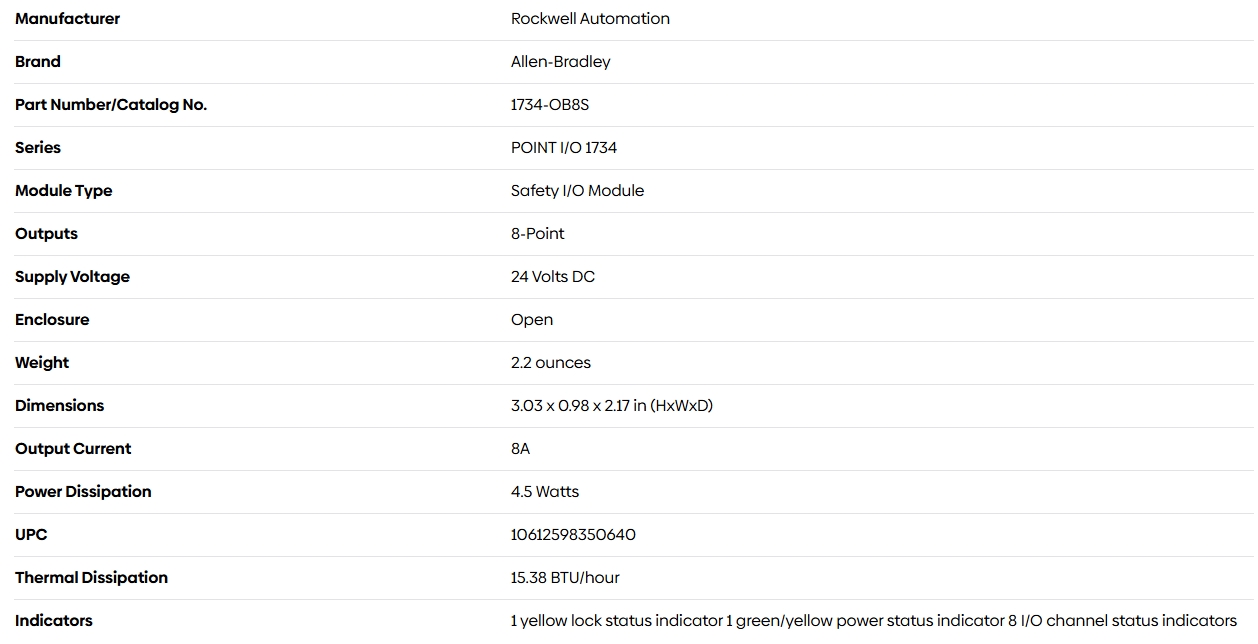

Technical Specifications

Description:

The 1734-OB8S’s reaction time is up to 6.2 milliseconds and its point-bus current reaches up to 190 mA. Its power dissipation is 4.5 Watts maximum and 3.02 Watts typical. It has a thermal dissipation of 15.38 BTU/hour. Its isolation voltage is 50 Volts continuous with basic insulation between the field side and the system. There is no isolation between individual channels. The 1734-OB8S has been tested at 707 Volts DC for 60 seconds. It has a power bus operating supply voltage of 24 Volts DC nominal and a voltage range of 19.2 to 28.8 Volts DC. When there is no load, it has a power-bus current of 75 mA. It comes with a variety of indicator lights, 1 yellow for lock status, 1 green/yellow for power status, and 8 I/O for the channel. The 1734-OB8S has a wiring category of 2-on signal ports. The wiring size and terminal block torque can only be determined by an installed terminal block. The 1734-OB8S has dimensions of 77 x 25 x 55 millimeters.

Our Services:

1、All our products are new and original, and of good quality.

2、Our prices are very competitive.

3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
