YASKAWA SGMSH -15D2A6S-OY New and Original High quality

SGMSH -15D2A6S-OY

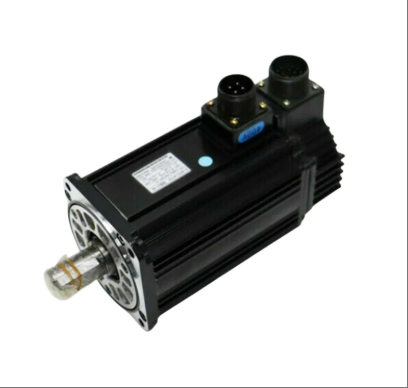

SGMSH-15D2A6S-OY servo motor is a high-performance servo motor designed specifically for industrial automation applications. It adopts a compact structure design, has high-precision positioning capability and fast dynamic response characteristics, and is suitable for scenarios that require high-precision motion control, such as CNC machine tools, electronic manufacturing equipment, industrial robots, etc. This motor supports use in conjunction with the Yaskawa ∑ -7 series drivers, achieving closed-loop control of position, speed, and torque through high-resolution encoders to ensure the stability and accuracy of equipment operation; Its rated power is about 1.5kW, suitable for 200V industrial power supply, and adopts a flange installation method, which is easy to integrate into various automation equipment. At the same time, it has high protection level and wide temperature operation capability, and can work stably in harsh industrial environments. In addition, this model of motor supports mainstream industrial bus protocols such as EtherCAT and MECHATROLINK-III, and can seamlessly connect with automation systems. It is equipped with STO safety torque shutdown function, which complies with the IEC 61800-5-2 safety standard and is suitable for industrial scenarios with strict reliability requirements such as multi axis linkage equipment and high-speed sorting systems.

Technical specifcations for SGMSH -15D2A6S-OY

Basic specifications

Rated power: approximately 1.5 kW (referring to the power range of the SGMSH-15DCA6F-OY model in the same series, the motor power of this series is usually concentrated in the 1.5 kW level, suitable for medium load scenarios).

Rated voltage: 200V level three-phase AC power supply (Yaskawa Electric's 200V level products are compatible with standard industrial power supplies and support three-phase power supply).

Protection level: IP65 or IP67 (the standard protection level for Yaskawa servo motors, which can adapt to dust and water splash environments, please refer to the product manual for details).

Weight: Approximately 5-8kg (based on the weight of 7.4683kg of the SGMSH-15DCA6H-OY model in the same series, combined with the compact design inference).

2、 Performance parameters

Encoder type: High resolution absolute encoder (supporting full closed-loop control, ensuring ± 0.01mm positioning accuracy, meeting the high-precision requirements of industrial automation).

Speed response frequency: ≥ 1kHz (dynamic response characteristics optimized in conjunction with ∑ -7 series drivers, suitable for high-speed trajectory tracking scenarios).

Rated speed: 1500-3000r/min (refer to the speed range of Yaskawa isomorphic motor, taking into account torque output and operating efficiency).

Instantaneous maximum torque: about 40-50N · m (calculated based on the ratio of 1.5kW power to motor inertia, meeting high load starting requirements).

Control mode: Supports vector control, torque control, and position control (compatible with ∑ -7 drivers, suitable for multi axis linkage and precision positioning scenarios).

3、 Mechanical and Installation

Installation method: Flange installation (standard industrial interface, easy to integrate into automation equipment).

Shaft end configuration: Straight shaft output (no keyway design, compatible with transmission components such as couplings).

Environmental adaptability: Operating temperature range of 0-40 ℃, humidity of 20% -88% (non condensing, in compliance with conventional industrial environmental requirements).

4、 Safety and reliability

Safety Function: Integrated STO (Safe Torque Off) function (compliant with IEC 61800-5-2 standard, ensuring emergency braking safety).

Protection mechanism: overload protection, overheating protection (with built-in temperature monitoring to extend motor life).

Certification standards: CE, UL, RoHS (internationally recognized certification to ensure product quality and compliance).

5、 Communication and compatibility

Communication protocol: Supports EtherCAT and MECHATROLINK-III (seamlessly integrated with mainstream industrial buses to achieve multi axis synchronous control).

Software support: SigmaWin+debugging software (visual parameter configuration, vibration suppression optimization, reducing debugging difficulty).

Compatibility: Compatible with ∑ -7 series drivers (fully closed-loop control optimization to improve system response speed and accuracy).

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
