YASKAWA SGMRV-37ANA-YR11 New and Original High quality

SGMRV-37ANA-YR11

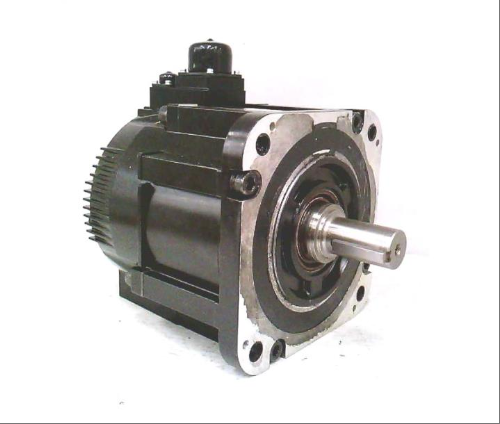

SGMRV-37ANA-YR11 servo motor is a high-performance servo motor designed specifically for industrial robots and automation equipment. It has a rated power of 3.7 kW and is compatible with a 200V three-phase power supply. The rated speed is 1500 r/min and the maximum speed can reach 3000 r/min. It has high dynamic response and low inertia characteristics, which can meet the requirements of high-speed precision positioning. It is equipped with a 13 bit incremental encoder (optional absolute encoder), supporting a positioning accuracy of ± 0.01mm, suitable for scenarios such as CNC machine tools and electronic manufacturing equipment that require strict trajectory tracking and repetitive positioning. The motor adopts a flange installation and flat shaft output structure, supports direct drive, and has a protection level of IP65 (motor body) to resist dust and water splashes. The working temperature range is 0-40 ℃, and the humidity is 20% -88% (no condensation), ensuring stable operation in industrial sites with high dust and humidity. In addition, this model supports collaboration with ∑ -7 series drivers and is compatible with mainstream industrial bus protocols such as EtherCAT and MECHATROLINK-III. Parameter visualization debugging and vibration suppression optimization are achieved through SigmaWin+software, while integrating STO safety torque shutdown function, which complies with the IEC 61800-5-2 safety standard. It can be widely used in scenarios that require high reliability and safety redundancy, such as joint drives for industrial robots and feed axes for CNC machine tools.

Technical specifcations for SGMRV-37ANA-YR11

Basic specifications

Rated power: 3.7kW, suitable for medium load industrial scenarios, meeting high dynamic performance requirements.

Rated voltage: 200V level three-phase power supply, suitable for standard industrial power environment.

Rated speed: 1500r/min, maximum speed can reach 3000r/min, balancing torque output and high-speed operation capability.

Rated current: 23.6A, instantaneous maximum current supports short-term overload conditions, and needs to be matched with the overload capacity of the driver.

Protection level: IP65 (motor body), the protection level of the shaft through part may be reduced, and it needs to be configured with sealing components.

Weight: Approximately 20-25kg (refer to the specifications of the same series of motors, please refer to the product manual for details).

2、 Performance parameters

Encoder configuration: 13 bit incremental encoder (8192P/r), optional 16 bit absolute encoder, supporting full closed-loop control.

Motor inertia: Designed as a low inertia structure with fast dynamic response, suitable for high-speed trajectory tracking scenarios.

Torque characteristics:

Rated torque: approximately 24N · m (calculated based on power and speed).

Instantaneous maximum torque: about 60N · m (short-term overload capacity).

Control accuracy: Supports positioning accuracy of ± 0.01mm to meet precision machining requirements.

Mechanical time constant:< 1ms, reflecting high-speed start stop performance.

Electrical time constant:< 10ms, reflecting the electromagnetic transient characteristics of the armature circuit.

3、 Mechanical and Installation

Installation method: flange installation, suitable for industrial equipment integration.

Shaft end design: Flat shaft output, optional balance key or plunger, supports direct drive.

Environmental adaptability:

Working temperature: 0-40 ℃, humidity 20% -88% (non condensing).

Vibration/Shock: Compliant with IEC 60068-2-6/27 standard, suitable for industrial site vibration environment.

4、 Safety and reliability

Safety function: Integrated STO safety torque cutoff, compliant with IEC 61800-5-2 standard, supports emergency braking.

Protection mechanism: Built in overload and overheating protection, extending the lifespan of the motor.

Certification standards: CE, UL, RoHS certification to ensure compliance and safety.

5、 Communication and compatibility

Communication protocol: Supports mainstream industrial buses such as EtherCAT and MECHATROLINK-III, and is compatible with multi axis synchronous control.

Driver compatibility: compatible with ∑ -7 series drivers, optimizing full closed-loop control performance.

Debugging software: Supports SigmaWin+parameter visualization configuration and vibration suppression optimization.
