YASKAWA SGMGH-30DCA6H-OY New and Original High quality

SGMGH-30DCA6H-OY

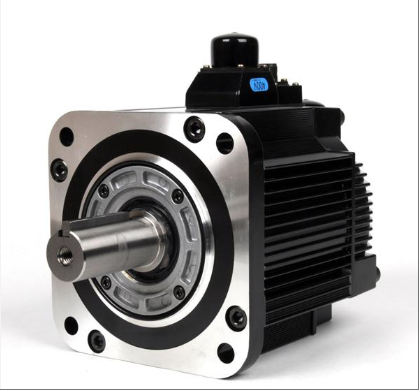

The SGMGH-30DCA6H-OY servo motor is a high-performance medium inertia servo motor designed specifically for the field of industrial automation. It adopts a permanent magnet synchronous motor structure and a 20 bit high-resolution absolute encoder, which can achieve a positioning accuracy of ± 0.003mm and a speed response frequency of 1kHz. Combined with the ∑ -7 series driver, it supports full closed-loop control and is suitable for scenarios such as CNC machine tools and semiconductor equipment that require strict dynamic response and trajectory accuracy. Its rated output power is 2.9 kW, rated speed is 1500 r/min, maximum speed can reach 3000 r/min, and instantaneous maximum torque can reach 107 N · m, which can adapt to high load starting and high-speed operation requirements. The motor adopts a flange installation and a straight axis keyless output design, supporting IP67 protection level (except for the shaft through part), and can operate stably under ambient temperature of 0-40 ℃ and humidity conditions of 20% -88%. It also integrates STO safety torque shutdown function, which complies with the IEC 61800-5-2 safety standard. Through a fully enclosed self cooling structure and high-strength heat dissipation design, the motor can operate continuously for a long time and is compatible with mainstream industrial bus protocols such as EtherCAT and MECHATROLINK-III. It can seamlessly integrate with automation systems and is suitable for multi axis linkage scenarios such as electronic manufacturing and packaging machinery.

Technical specifcations for SGMGH-30DCA6H-OY

Basic specifications

Rated output power: 2.9kW, belonging to the medium power range, suitable for various industrial automation equipment.

Rated voltage: 200V, compatible with common industrial power sources, ensuring stable operation.

Protection level: IP67 (excluding shaft penetrations), with high dust and water resistance, suitable for use in harsh environments.

2、 Performance parameters

Encoder: Adopting a high-resolution encoder to achieve high-precision position feedback, ensuring a positioning accuracy of ± 0.003mm.

Speed response frequency: up to 1kHz, fast dynamic response, able to quickly track command signals.

Rated torque: 18.6N · m, instantaneous maximum torque can reach 45.1N · m, able to adapt to high load start-up and operation requirements.

Rated speed: 1500r/min, with a maximum speed of 3000r/min, meeting the requirements for high-speed operation.

3、 Mechanical and Installation

Installation method: Supports flange installation for easy integration with equipment.

Shaft end configuration: Adopting a straight shaft keyless output design, the structure is compact and easy to connect transmission components.

Inertia characteristics: The moment of inertia of the rotating rotor is 31.7 × 10 ⁻⁴ kg · m ² (40.2 × 10 ⁻⁴ kg · m ² with holding brake), suitable for different load requirements.

4、 Environmental adaptability

Working temperature: 0-40 ℃, can operate stably in conventional industrial environments.

Humidity range: 20% -88%, suitable for different humidity conditions.

5、 Safety and reliability

Safety Function: Integrated STO (Safe Torque Off) function, compliant with IEC 61800-5-2 standard, ensuring operational safety.

Protection mechanism: equipped with overload protection, overheating protection and other functions, extending the service life of the motor.

6、 Communication and compatibility

Communication interface: Compatible with mainstream industrial bus protocols such as EtherCAT and MECHATROLINK-III, facilitating integration with industrial control systems.

Compatibility: Can be used in conjunction with ∑ -7 series drivers to achieve full closed-loop control and improve system performance.
