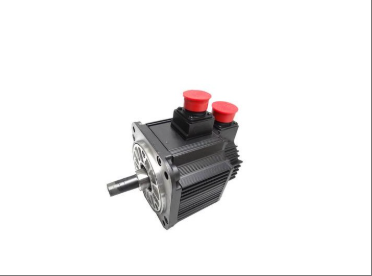

SGMGH-05DCA6F-OY
SGMGH-05DCA6F-OY servo motor is a high-performance servo motor designed specifically for the field of industrial automation. It adopts advanced vector control technology and combines high-resolution encoder feedback system to achieve ± 0.01mm positioning accuracy and millisecond dynamic response. It is suitable for scenarios such as data control machine tools and printing machinery that require strict processing accuracy and response speed; This model supports three-phase AC200V input and can achieve factory preset parameters when adapted to ∑ -7 series drivers. Users can quickly put it into use without on-site debugging, significantly shortening the equipment delivery cycle; The motor has a protection level of IP54, with moisture and dust resistance characteristics, complies with RoHS standards, and supports CC-LINK communication protocol, making it easy to integrate into mainstream industrial control systems; Its compact design and bolt installation method enable it to flexibly adapt to different mechanical structures, while the incremental encoder and optional brake device further enhance the stability and safety of equipment operation.
Technical specifcations for SGMGH-05DCA6F-OY
Basic performance parameters
Rated output power: 0.55kW (some data shows 0.45kW, which may depend on specific configuration or version), belongs to the medium power range servo motor, suitable for medium load scenarios.
Rated speed: 1000r/min, with a maximum speed of 2000r/min, meeting the requirements for high-speed operation.
Rated torque: about 3.82N · m (calculated based on SGMGH series 6-pole motor parameters), the instantaneous maximum torque can reach 2-3 times the rated torque, ensuring high load starting capability.
Encoder resolution: Standard 17 bit incremental encoder (131072P/r), optional 17 bit absolute encoder, providing high-precision position feedback.
Inertia characteristics: Designed with medium inertia, the motor has an inertia of approximately 67.5 × 10 ⁻⁴ kg · m ², balancing dynamic response and stability.
2、 Electrical and Control Parameters
Power supply voltage: three-phase AC200V, compatible with standard industrial power supply, supports wide voltage input range.
Control mode: Supports vector control, torque control, and position control, adapted to the ∑ -7 series driver to achieve adjustment free and immediate use.
Communication interface: equipped with CC-LINK communication protocol, supporting seamless integration with mainstream industrial control systems.
Safety Function: Integrated STO (Safe Torque Off) function, compliant with IEC 61800-5-2 standard, ensuring operational safety.
3、 Mechanical and installation parameters
Installation method: Supports bolt installation, compatible with flange installation, and adaptable to different mechanical structures.
Axis end configuration: Standard flat axis output (with flat key), optional 1:10 cone axis (with flat key or semi-circular key).
Protection level: IP54 protection, dustproof and splash proof, suitable for harsh industrial environments.
Environmental adaptability: Working temperature of 0-40 ℃, humidity of 20% -80% (no condensation), stable operation below an altitude of 3000 meters.
4、 Structure and authentication parameters
Motor structure: Fully enclosed self cooling design (excluding shaft through parts), high heat dissipation efficiency, and extended service life.
Certification standard: Passed 3C certification, complies with RoHS environmental directive, and has reliable quality.
Size and weight: The specific size varies depending on the installation method, and the weight is moderate for easy integration and maintenance.
