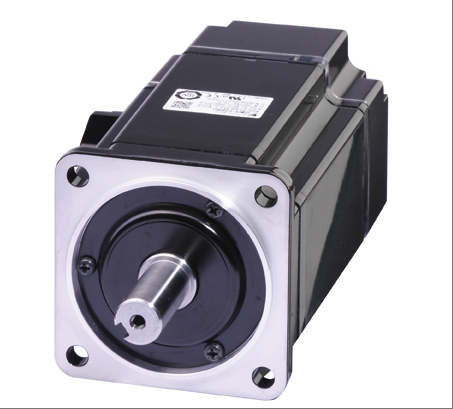

SGMEV-07DDA61-OY
The SGMEV-07DDA61-OY servo motor is a compact servo drive component designed specifically for high-precision industrial automation scenarios. Its core advantage lies in the use of a 17 bit high-resolution incremental encoder in conjunction with the ∑ -7 series driver, which can achieve a positioning accuracy of ± 0.005mm and a dynamic response of milliseconds. It is suitable for fields such as CNC machine tools, semiconductor equipment, and printing machinery that require strict trajectory tracking and synchronization control. The motor has a rated power of 1kW and supports three-phase AC200V input. It is equipped with temperature monitoring and overload protection mechanisms, with a protection level of IP54. It can operate stably under environmental temperatures ranging from -10 ℃ to 50 ℃ and humidity conditions of 20% -90%. Its flange installation structure and direct shaft output design greatly reduce equipment integration space, and is compatible with mainstream industrial bus protocols such as EtherCAT and MECHATROLINK-III. It also supports parameter visualization debugging and vibration suppression optimization through SigmaWin+software, demonstrating high efficiency and easy maintenance characteristics in high-speed multi axis linkage scenarios such as electronic manufacturing and packaging machinery.
Technical specifcations for SGMEV-07DDA61-OY
Basic specifications
Rated power: 1kW, suitable for medium load driving scenarios, can meet the power requirements of most industrial automation equipment.
Rated voltage: three-phase AC200V, compatible with common industrial power sources to ensure stable operation.
Protection level: IP54, which can effectively prevent dust intrusion and splash water, and adapt to a certain degree of harsh industrial environment.
2、 Performance parameters
Control mode: Supports vector control, torque control, and position control. When combined with the ∑ -7 series driver, it can achieve adjustment free and immediate use, simplifying the debugging process.
Encoder resolution: Equipped with a 17 bit incremental encoder as standard, it can provide high-precision position feedback and achieve positioning accuracy of ± 0.005mm, meeting high-precision positioning requirements.
Speed response frequency: up to 1kHz, fast dynamic response, can quickly track command signals, and improve production efficiency.
Torque characteristics: With high rated torque and instantaneous maximum torque, it can adapt to high load starting and operation, ensuring stable operation of the equipment.
3、 Mechanical and Installation
Installation method: Supports flange installation, facilitates integration with equipment, and saves space.
Shaft end configuration: Adopting a direct shaft output design, the structure is compact and easy to connect transmission components.
Working environment: It can operate stably under ambient temperatures ranging from -10 ℃ to 50 ℃ and humidity conditions ranging from 20% to 90%, with a wide range of adaptability.
4、 Communication and compatibility
Communication interface: compatible with mainstream industrial bus protocols such as EtherCAT and MECHATROLINK-III, facilitating integration with industrial control systems, achieving fast data transmission and collaborative control of devices.
Software support: Parameter visualization debugging and vibration suppression optimization can be performed through SigmaWin+software, which facilitates equipment debugging and maintenance.
5、 Safety and reliability
Safety Function: Integrated STO (Safe Torque Off) function, compliant with IEC 61800-5-2 standard, ensuring operational safety.
Protection mechanism: Built in temperature monitoring and overload protection mechanism, real-time monitoring of motor operation status, preventing motor damage due to overheating or overload, and extending motor service life.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
