ZSE40A-01-T

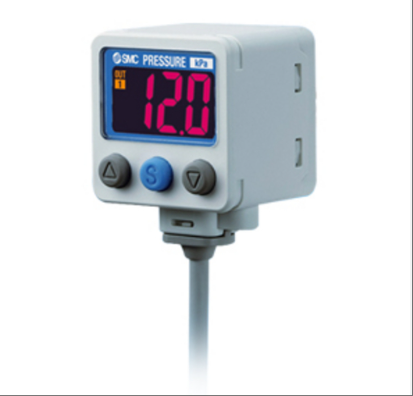

The ZSE40A-01-T model is a high-precision digital vacuum pressure switch with a compact design that supports dual range detection of vacuum and positive pressure (rated pressure range -101.3kPa to 101kPa). It has PNP collector open circuit dual channel output and 1-5V analog voltage signal synchronous output function, and can flexibly switch between digital and analog control modes. It is equipped with a 3 1/2 7-segment LCD dual color display screen (red/green backlight), supporting ± 2% F.S. high-precision display and ± 0.2% F.S. repeatability accuracy. The pressure setting range covers 10kPa to -105kPa, and the response time is only 2.5ms (including anti oscillation function). The protection level reaches IP65, and the piping specification is R1/8 (with M5 internal thread). It supports air, non corrosive gas, and non flammable gas detection, with a working temperature range of -5 ℃ to 50 ℃. It is suitable for pressure monitoring and alarm scenarios in automated production lines, vacuum equipment, and pneumatic systems.

Technical specifcations for ZSE40A-01-T

Basic specifications

Type: Vacuum pressure (compatible with vacuum and positive pressure detection)

Rated pressure range: 0 to 101.3kPa (vacuum side), supports vacuum detection with negative pressure up to -101.3kPa

Display/set pressure range: 10 to 105kPa (supports dual range adjustment of positive and negative pressure)

Pressure resistance test pressure: 500kPa

2、 Electrical performance

Power supply voltage: 12 to 24VDC (± 10% fluctuation, with reverse protection)

Current consumption: ≤ 45mA

Output specifications:

Switch output: PNP collector open circuit dual channel (OUT1, OUT2)

Analog output: 1 to 5V voltage signal (accuracy ± 2.5% F.S.)

Load current: 80mA (switch output)

Short circuit protection: built-in

Response time: 2.5ms (including anti oscillation function, supporting multi level selection of 20/100/500/1000/2000ms)

Display accuracy: ± 2% F.S. ± 1digit (ambient temperature 25 ± 3 ℃)

Repetition accuracy: ± 0.2% F.S. ± 1digit

Hysteresis mode: Variable upper and lower limit comparison mode (adjustable from 0)

Analog output characteristics:

Output voltage range: 1 to 5V (± 2.5% F.S.)

Linearity: below ± 1% F.S

Output impedance: approximately 1k Ω

3、 Environmental adaptability

Temperature range for use: -5 to 50 ℃ during operation, -10 to 60 ℃ during storage (no condensation or freezing)

Humidity range: 35 to 85% RH (no condensation)

Protection level: IP65 (IEC standard)

Voltage endurance: 10000VAC (between the energized part and the shell, 1 minute)

Insulation resistance: ≥ 50M Ω (500VDC megohmmeter, between charging unit and housing)

Vibration resistance: 10 to 150Hz full amplitude 1.5mm or 20m/s ² (2 hours in XYZ directions, no power)

Temperature characteristics: 100m/s ² (3 loops in XYZ directions, no power)

4、 Installation and Interface

Piping specification: R1/8 (with M5 internal thread)

Display mode: 3 1/2 bit 7-segment LCD dual color display (red/green)

Action indicator light: When the switch output is ON, the orange light is on (OUT1, OUT2)

Unit specification: SI unit fixed

Automatic displacement input: No voltage input (with or without contacts), Low level ≤ 0.4V, input time ≥ 5ms

5、 Fluid compatibility

Suitable for fluids: air, non corrosive gases, non combustible gases

Residual voltage: ≤ 1V

6、 Other characteristics

Set pressure range: 10 to -105kPa (supports dual range adjustment of positive and negative pressure)

Analog voltage output linearity: below ± 1% F.S

Display small unit: 0.1kPa

Output specification switching: Supports PNP collector open circuit dual output+analog voltage/automatic shift switching
