SMC SY7120-5YO-02F-Q Solenoid Valve

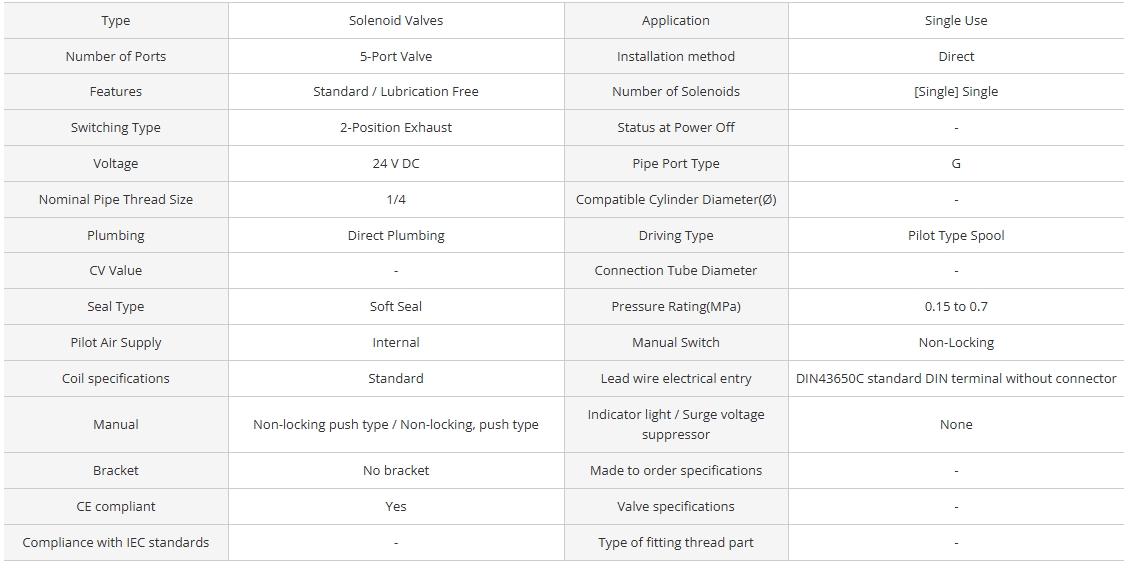

Specification
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
- Fluid: air
- Operating pressure range: (internal pilot) 0.1 - 0.7MPa
- (external pilot) -100kPa to 0.7MPa
- (external pilot, pilot pressure range) 0.25 - 0.7MPa
- Effective area mm 2 (Cv): body ported 10.6 (0.59);
- base mounted 12.6 (0.7)
- Coil rated voltage: 3, 5, 6, 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time (0.5MPa) w/o indicator light andamp;
- surge voltage suppressor: 32ms or less
- Ambient andamp; fluid temperature: 50 C
