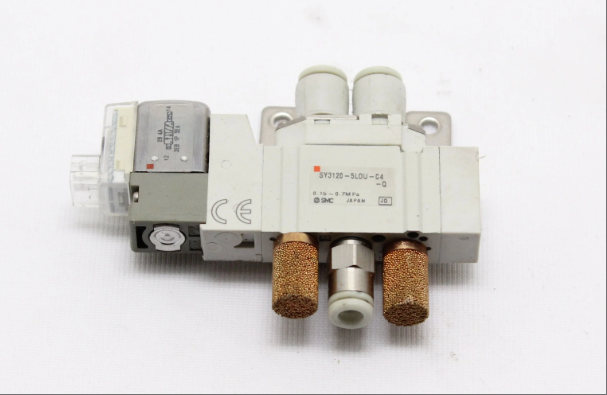

SY3120-5LOU-C4-Q
The SY3120-5LOU-C4-Q model is a high-performance 5-way solenoid valve designed with a 2-position single control function, rated voltage of DC24V, and equipped with an L-shaped socket type wire lead out method without joints. The A · B connecting pipe diameter is a Φ 4 quick change joint, supporting direct piping installation. The valve body is non insertable, and the sealing method adopts elastic sealing to ensure good sealing performance and durability; Its leading mode is internal leading type, with P and R ports connected with a diameter of M5X0.8, possessing fast response capability with a response time of only 12ms, a maximum operating frequency of 10Hz, and a power consumption of 0.4W. It can work stably in the range of environmental temperature and fluid temperature from -10 ℃ to 50 ℃. This solenoid valve is suitable for industrial automation control field. Through its precise fluid control capability and reliable electrical performance, it can effectively improve production efficiency and system stability, and meet the control requirements of various pneumatic systems for high precision and high response speed.
Technical specifcations for SY3120-5LOU-C4-Q
Function and control mode: Adopting a 2-digit single electronic control function design, the valve core is switched through electromagnetic force, suitable for on/off control of pneumatic systems.
Electrical parameters: The rated voltage is DC24V, which meets the common power supply standards for industrial automation equipment; The coil consumes 0.4W of power, and the low-power design reduces equipment energy consumption.
Port and connection method: A · B has a diameter of Φ 4 quick change connector, supporting direct piping installation and simplifying the on-site pipeline connection process; P. The diameter of the R port connecting pipe is M5 × 0.8, suitable for standard pneumatic pipelines.
Structure and Sealing: The valve body adopts a non insertion structure, and the internal sealing method is elastic sealing, ensuring long-term use without leakage; The protection level meets the requirements of industrial environment and adapts to complex working conditions.
Pilot mode: Adopting an internal pilot design, pressure drive is achieved through the built-in pilot hole in the main valve core, which has the characteristics of fast response speed and high stability.
Performance parameters: response time of only 12ms, maximum operating frequency of 10Hz, meeting the requirements of high-speed automation equipment; The applicable range of environmental temperature and fluid temperature is -10 ℃ to 50 ℃, suitable for most industrial scenarios.
Installation and compatibility: Supports direct piping installation, can be used independently or integrated into valve groups; Compatible with SMC SY3000 series pneumatic components for easy system expansion and maintenance.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
