SMC MGPM32-200AZ TF New and Original High quality

MGPM32-200AZ TF

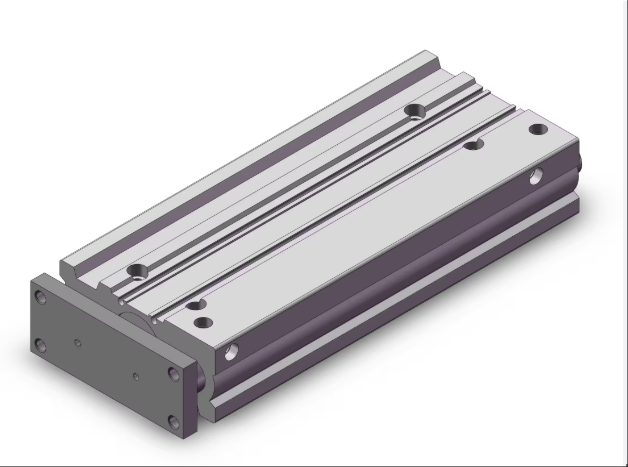

The MGPM32-200AZ-TF model is a thin cylinder with a guide rod, belonging to the MGP series. It adopts a double acting design and achieves reciprocating linear motion of the piston through compressed air drive. Its cylinder diameter is 32mm and the stroke reaches 200mm, meeting the requirements of long stroke applications; The main material is aluminum alloy, which balances lightweight and high strength, making it suitable for compact space layouts. This model has a built-in guide rod structure, which can effectively prevent the piston rod from rotating and improve load stability, especially suitable for working conditions that require high-precision guidance. Its working temperature range is -10 ℃ to 60 ℃, with a maximum pressure resistance of 1.0MPa. It is compatible with air as the driving medium and does not require additional lubrication, making maintenance convenient. The cylinder adopts a rubber buffer design to reduce impact noise and extend service life, suitable for scenarios such as food machinery and automated assembly lines that require high operational stability. In addition, the TF type may have specific configurations (such as reserved interfaces for magnetic switches or special sealing structures), and specific functions need to be confirmed in conjunction with the SMC official selection manual.

Technical specifcations for MGPM32-200AZ TF

Infrastructure parameters

Cylinder diameter: 32mm, in line with standard industrial cylinder size, compatible with most automation equipment interfaces.

Travel: 200mm, providing longer travel to meet the requirements of working conditions that require larger displacement.

Structure type: Thin cylinder with guide rod, built-in guide rod structure can prevent piston rod rotation, improve load stability, especially suitable for high-precision guidance scenarios.

Main material: aluminum alloy, combining lightweight and high strength, suitable for compact space layout, reducing the overall weight of the equipment.

2、 Performance parameters

Action mode: Double acting cylinder, driven by compressed air to achieve bidirectional linear motion of the piston, meeting the requirements of reciprocating motion.

Working pressure range: maximum operating pressure of 1.0MPa, guaranteed pressure resistance of 1.5MPa, suitable for most pneumatic system pressure requirements.

Working temperature range: -10 ℃ to 60 ℃, can adapt to temperature changes in conventional industrial environments.

Using fluid: air, no additional lubrication required, simplifying maintenance process.

Piston speed range: 50-500mm/s, supporting high-speed or low-speed working conditions, suitable for different motion rhythm requirements.

Buffer method: Rubber buffer reduces the noise of piston rod impact and extends the service life of the cylinder.

3、 Interface and installation parameters

Piping diameter: Suitable for standard pneumatic pipeline interfaces, facilitating system integration.

Installation method: Supports fixed installation, simplifies the connection process with the device through specific installation structures (such as earring integrated).

Magnetic switch compatibility: TF type may reserve a magnetic switch interface and support position detection function (specific configuration needs to be confirmed in conjunction with SMC official selection manual).

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
