SMC D-Z73L New and Original High quality

D-Z73L

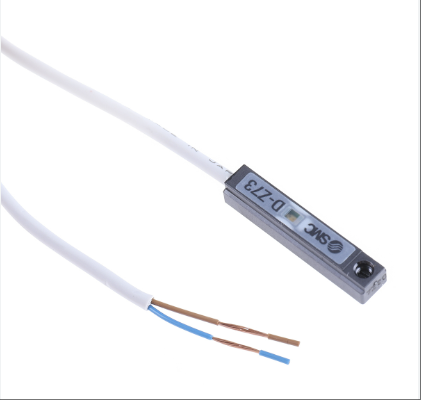

The D-Z73L model product is a magnetic switch with contacts, designed for direct installation, featuring a 2-wire direct output structure and integrated indicator lights. It is suitable for DC24V and AC100V dual voltage power supply systems. Its standard configuration is a 3-meter long wire that can adapt to complex wiring requirements, and the square shell design is easy to install directly on the cylinder or fix through a bracket in a compact space. The product achieves passive magnetic field induction control through a built-in reed switch. When the magnetic substance approaches, the contact closes, and when the external magnetic force disappears, the contact opens, forming a stable and reliable electrical circuit. This model has a protection level of IP67, with dust-proof and waterproof performance. Its working temperature range covers -10 ℃ to+60 ℃, and it can adapt to harsh industrial environments such as high humidity and high dust. Its high sensitivity can quickly respond to magnetic field changes, and with a response time of less than 1ms, it can accurately control the stroke position of equipment such as cylinders and pneumatic motors. It is widely used in industrial scenarios such as automated production lines, logistics sorting, and packaging machinery that require precise position feedback.

Technical specifcations for D-Z73L

Basic specifications

Model and Type: D-Z73L, a SMC brand magnetic switch with contact points, adopts a direct installation design for easy integration into pneumatic systems.

Structural features: The switch adopts a direct outgoing structure and is equipped with indicator lights, which can intuitively display the switch status. Its 2-wire design simplifies the wiring process and improves installation efficiency. The wire length is 3 meters, suitable for the wiring needs of most industrial sites.

Applicable voltage: Supports two voltages of DC24V and AC100V, and can flexibly adapt to different electrical control systems.

2、 Performance parameters

Protection level and environmental adaptability: The D-Z73L magnetic switch has a high protection level, which can effectively resist the invasion of environmental factors such as dust and moisture, ensuring stable operation in harsh industrial environments. Its working temperature range is -10 ℃ to 60 ℃, which can adapt to temperature changes in most industrial sites.

Response speed and reliability: This switch has fast response capability and can accurately detect changes in the position of actuators such as cylinders. Its contact design ensures the stability and reliability of signal transmission, reducing the risk of misoperation.

3、 Installation and compatibility

Installation method: The D-Z73L magnetic switch supports direct installation without the need for complex installation accessories, saving installation space and time. At the same time, its compact square shape design facilitates flexible arrangement within limited space.

Compatibility: This switch can be seamlessly integrated with pneumatic components such as SMC brand cylinders and solenoid valves to form a complete automation control system. Its standard interface size and electrical parameters ensure compatibility with other branded components.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
