SMC CQ2B20-5S New and Original High quality

CQ2B20-5S

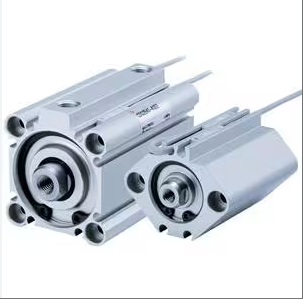

The CQ2B20-5S model is a thin cylinder designed with standard components and made of aluminum material. It is lightweight and corrosion-resistant, making it suitable for industrial automation scenarios. Its cylinder diameter is 20mm, stroke is 5mm, compact structure, supports through-hole (B-type) installation, and meets the requirements of narrow space applications. The rated working pressure range of this product is 0.05~1.0MPa, with a maximum pressure resistance of 1.5MPa. It can be adapted to air as the driving medium without additional lubrication and is easy to maintain. The speed range of the cylinder piston is 50~500mm/s, with a stroke tolerance of ≤ 1mm. It supports the installation of magnetic switches (which need to be equipped separately) to facilitate position detection function. Its interface caliber provides multiple specifications such as M5 × 0.8, 1/8, 1/4, 3/8, etc., compatible with different pipeline systems, with wide environmental adaptability, and a working temperature range covering -10 ℃ to 70 ℃ (non-magnetic switch) or -10 ℃ to 60 ℃ (with magnetic switch), suitable for multi working environment.

Technical specifcations for CQ2B20-5S

Basic structural parameters

Cylinder diameter: 20mm, belonging to the standard size of thin cylinder, suitable for installation environments with limited space.

Travel: 5mm, short travel design meets precision positioning requirements, commonly used in fixture, inspection and other working conditions.

Structure type: Standard thin cylinder, using through-hole (B-type) installation method, easy to integrate with equipment.

Main material: Aluminum, combining lightweight and corrosion resistance, suitable for industrial automation scenarios.

2、 Performance parameters

Working pressure range: 0.05~1.0MPa, supporting low to high pressure drive requirements, covering most pneumatic systems.

Maximum pressure resistance: 1.5MPa, ensuring reliability under transient pressure fluctuations.

Piston speed range: 50~500mm/s, suitable for high-speed or low-speed working conditions, such as fast sorting or slow pressure loading.

Travel tolerance: ≤ 1mm, ensuring repeat positioning accuracy, suitable for automated processes that require high consistency.

3、 Interface and compatibility

Interface specifications: Provides multiple calibers such as M5 × 0.8, 1/8, 1/4, 3/8, etc., compatible with different pipeline systems.

Drive medium: Compatible with compressed air, no additional lubrication required, reducing maintenance costs.

Magnetic switch compatibility: Supports optional magnetic switches (such as X202 model) to achieve position detection and signal feedback.

4、 Environmental adaptability

Working temperature range:

Non magnetic switch: -10 ℃ to 70 ℃, suitable for conventional industrial environments.

Magnetic switch: -10 ℃ to 60 ℃, pay attention to the temperature resistance limit of the switch components.

Protection level: Although the IP level is not clearly marked, the aluminum body and sealing design can resist dust and mild moisture.

5、 Installation and maintenance

Installation method: Supports through-hole installation, can be fixed on the surface of the equipment or integrated into modular valve groups.

Maintainability: Modular design facilitates disassembly and seal replacement, reducing downtime.

Optional accessories: Provides sealing components (such as CQ2B20-PS), floating joints, etc. to extend service life and optimize transmission accuracy.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment

More Products In Stock:
