SMC CD85N20-25-B New and Original High quality

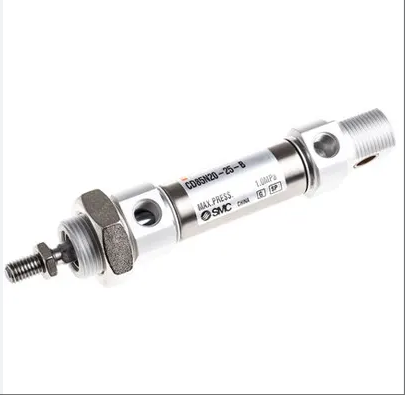

CD85N20-25-B

The CD85N20-25-B model is a standard single rod double acting cylinder, manufactured using Japanese original manufacturing technology. Its cylinder diameter is 20mm, stroke is 25mm, and the main material is high-strength aluminum alloy, which combines lightweight and durability. This product is compatible with ISO standards and achieves compact installation through a single earring integrated (N-type) rodless side cylinder head design, suitable for workstations with limited space in automation equipment. The magnetic switch adopts a steel strip installation type (B-type) design, which can be conveniently equipped with magnetic sensors to achieve position detection function. The working temperature range of the cylinder is -10 ℃ to 60 ℃, suitable for a wide working pressure of 0.05~1.0MPa, with a maximum pressure resistance of 1.5MPa, meeting the requirements of rapid reciprocating motion in industrial scenarios. The interface thread specification is M8 × 1.25, and the pipe diameter is 1/8 inch, supporting seamless connection with mainstream pneumatic components. This model of cylinder, with its high precision and reliability performance, is widely used in automated production lines such as electronic manufacturing, packaging machinery, and automotive parts processing, especially suitable for working conditions that require precise stroke control and fast response.

Technical specifcations for CD85N20-25-B

Infrastructure parameters

Cylinder diameter: 20mm, compliant with ISO standards, suitable for most pneumatic systems.

Travel: 25mm, short travel design suitable for high-precision positioning or short distance reciprocating motion scenarios.

Structure type: Single rod double acting cylinder, driven by compressed air to achieve bi-directional piston movement.

Main material: aluminum alloy, both lightweight and corrosion-resistant, suitable for industrial automation environments.

Rodless side cylinder head form: basic type (with single earring integrated), easy to fix and save space.

2、 Performance parameters

Working pressure range: 0.05~1.0MPa, suitable for low to medium pressure drive requirements.

Maximum pressure resistance: 1.5MPa, ensuring reliability under transient pressure fluctuations.

Working temperature range: -10 ℃ to 60 ℃, suitable for conventional industrial environments (with the same temperature range for the built-in magnetic ring type).

Fluid used: air, no additional lubrication required, easy to maintain.

Buffer method: Rubber buffer reduces piston impact noise and extends service life.

Piston speed range: 50~1500mm/s, suitable for high-speed or low-speed working conditions.

3、 Interface and compatibility

Pipe diameter (air pressure port): 1/8 inch, compatible with standard pneumatic pipelines.

Type of threaded connection: M8 × 1.25, easy to connect with joints or valve groups.

Magnetic switch installation method: B-type (steel strip installation type), supports optional magnetic sensors for position detection.

4、 Installation and maintenance

Installation method: Fixed installation, supports single earring integrated structure, simplifies equipment integration process.

Magnetic switch compatibility: compatible with D-A73L, D-C73L and other models, supporting position feedback function.

Maintainability: Modular design facilitates seal replacement and reduces downtime costs.
