SMC C96C50-NFW001-150 New and Original High quality

C96C50-NFW001-150

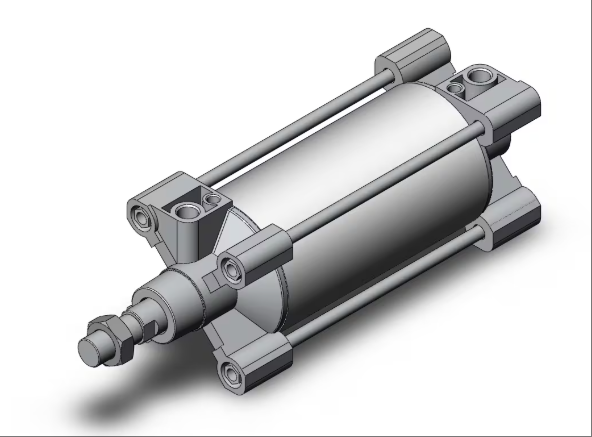

The C96C50-NFW001-150 model product is a thin standard cylinder that complies with ISO standard (21287). It adopts a single rod double acting design and achieves bidirectional linear motion of the piston through compressed air drive. Its cylinder diameter is 50mm and the stroke can reach 150mm, which can adapt to the needs of most automation equipment for medium stroke and load; The main material is aluminum alloy, which combines lightweight and high-strength characteristics, suitable for compact space layout. This model has a built-in magnetic ring and supports the installation of magnetic switches (which need to be equipped separately), making it easy to achieve position detection function; Adopting rubber cushioning design to reduce piston rod impact noise and extend service life. The working temperature range of the cylinder is -10 ℃ to 60 ℃, with a maximum pressure resistance of 1.0MPa. It is compatible with air as the driving medium and does not require additional lubrication, making maintenance convenient. In addition, the product may integrate SMC's patented pad cushioning technology (specific details need to be confirmed in the selection manual), which can shorten the production cycle time by combining air cushioning and pad cushioning, and reduce the metal noise when the piston stops. It is suitable for industrial scenarios such as electronic manufacturing, packaging machinery, and automotive parts processing that require high stability and accuracy in operation.

Technical specifcations for C96C50-NFW001-150

Infrastructure parameters

Cylinder diameter: 50mm, belonging to the medium cylinder diameter specification, can adapt to the load requirements of most automation equipment.

Travel: 150mm, providing a long displacement range, suitable for working conditions that require a large movement travel.

Structure type: A single rod double acting cylinder that complies with the ISO (15552) standard and achieves bidirectional linear motion of the piston through compressed air.

Main material: aluminum alloy, combining lightweight and high-strength characteristics, suitable for compact space layout requirements.

Installation method: Axial foot seat type installation, easy to fix on the surface of the equipment or integrate into modular valve groups.

2、 Performance parameters

Working pressure range: 0.05~1.0MPa, suitable for most pneumatic system pressure requirements.

Maximum pressure resistance: 1.5MPa, ensuring reliability under transient pressure fluctuations.

Working temperature range: -10 ℃ to 60 ℃, can adapt to temperature changes in conventional industrial environments.

Using fluid: air, no additional lubrication required, simplifying maintenance process.

Buffer method: Two side air buffer+cushion buffer, shorten production cycle time and reduce metal noise when the piston stops.

Piston speed range: 50~1000mm/s, supports high-speed or low-speed working conditions, adapts to different motion rhythm requirements.

Travel length tolerance: 0-2mm, ensuring repeat positioning accuracy.

Piston rod diameter: 20mm, providing stable support.

Compressed area: 1649mm ² on the intake side and 1963mm ² on the exhaust side, affecting the theoretical thrust calculation.

Theoretical thrust: At a pressure of 0.2~1.0MPa on the intake side, the thrust range is 330~1649N; At a pressure of 0.2~1.0MPa on the exhaust side, the thrust range is 393~1963N.

3、 Interface and installation parameters

Pipe diameter (air pressure port): 1/4 inch, compatible with standard pneumatic pipeline interfaces.

Type of through-hole thread: G-type thread, easy to connect with joints or valve groups.

Rod end shape: External thread, with a size of M16X1.5 for easy connection with loads.

Magnetic switch compatibility: Non magnetic switch (with built-in magnetic ring model D), requires additional magnetic sensors to achieve position detection function.
