Siemens New Series Frequency Converters 25 / 10

• Launch Sinamics G120X series frequency converters, designed specifically for fan and pump applications, to meet the needs of infrastructure industries such as water treatment and HVAC

• Among them, the Sinamics G120XA series of standard fan pump dedicated frequency converters are produced in China, mainly targeting the Chinese and Indian markets

• Can be connected to Siemens' cloud based open IoT operating system MindSphere through the Sinamics Connect 300 communication module, enabling data to be uploaded to the cloud

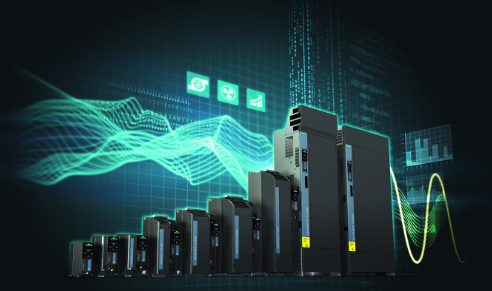

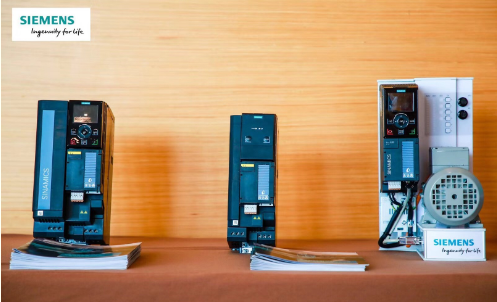

On January 16, 2019, Siemens released new Sinamics G120X and G120XA frequency converters in China, designed specifically for fan and pump applications, particularly suitable for infrastructure applications such as water supply and sewage treatment, building construction, subway tunnel ventilation, and generally suitable for industrial environments such as water sludge, chemicals, food and beverage. This series of frequency converters has the characteristics of energy conservation, reliability, and ease of use, implementing the concept of energy conservation and cost reduction throughout the entire product lifecycle; The rich protection functions greatly reduce fault downtime and can cope with harsh external environments; Its compact appearance makes it easy to install, use, and maintain.



Standard fan pump dedicated frequency converter Sinamics G120XA


Sinamics G120XA standard fan pump dedicated frequency converter is produced in China and currently mainly targeting Asian markets such as China and India. Its power range is 0.75 to 560 KW, almost fully covering the power requirements of fans and pumps in the low-voltage market; The integrated vector control algorithm can greatly improve the control accuracy of torque and speed. The Sinamics G120XA frequency converter supports high-efficiency motors such as synchronous motors and reluctance motors, integrates energy-saving mode (ECO), sleep function, and can automatically calculate energy consumption to ensure optimal performance, minimum loss, and optimal output power. The operating voltage range of Sinamics G120XA is -20% to+10%, and the operating temperature range is -20 ℃ to 60 ℃. It is equipped with dual DC reactors and active protection functions, and the combination of software and hardware reduces fault shutdown time. Its compact structure can be installed side by side to save space; Integrate various fan and pump specific functions such as typical connection macros, multi pump control, high-speed start, dredging function, fire mode, etc., allowing for professional, simple, and fast debugging work; In addition, engineers can also conduct guided and visual diagnosis and debugging through PC and mobile wireless access. Customers can receive a free warranty of up to 30 months by registering online.



Fan pump dedicated frequency converter Sinamics G120X


Sinamics G120X frequency converters are aimed at the global market and offer a wider range of product specifications, currently produced in Germany and the UK. The power range of G120X series frequency converters is 0.75 to 630 kW, suitable for all motor types. In addition to supporting 380V voltage, it can also be applied to two voltage input types: 690V and 220V. It supports the 3C3 coating with high protection standards. In addition to the IP20 protection level, two protection levels will be introduced in the future, IP21/IP55, to meet more application scenarios. The G120X frequency converter is not only suitable for Modbus communication protocols, but also supports Profinet and Profibus fieldbuses. Its integrated security features have passed SIL3 certification.



Data can be directly uploaded to the cloud to optimize processes and maintenance processes


The Sinamics G120X/XA series frequency converters can be directly connected to Siemens' cloud based open IoT operating system MindSphere through the Sinamics Connect 300 connection device. Evaluate the operational data collected from frequency converters, drive systems, and machine equipment through the Analyze MyDrives application on MindSphere, achieve visualization and analysis of status information, provide valuable data for users, and optimize processes and maintenance processes.
