SIEMENS 6GK7343-2AH01-0XA0 New and Original High quality

6GK7343-2AH01-0XA0

The 6GK7343-2AH01-0XA0 model product is a communication module designed specifically for industrial automation, belonging to the Siemens SIMATIC NET industrial communication product series. Its core function is to provide PROFIBUS-DP or PROFINET network expansion capabilities for S7-300 series PLCs. This module adopts a compact modular design, supports flexible switching between fieldbus protocol and industrial Ethernet protocol, and can achieve high reliability communication through dual port redundant connection. Typical application scenarios include distributed I/O expansion of production lines, interconnection of multi rack systems, and factory automation network integration. Its technical features include support for up to 127 PROFIBUS slave stations or 64 PROFINET devices, 12Mbps communication speed, dual configuration of 9-pin D-type Sub interface and RJ45 Ethernet interface, and integrated diagnostic functions such as data transmission rate monitoring and network topology recognition. It is compatible with STEP 7 engineering configuration tool for parametric configuration. This model module, with its protocol conversion flexibility and network expansion efficiency, has significant application value in discrete manufacturing fields such as automotive manufacturing and food and beverage processing that require high synchronization data exchange. It is particularly suitable for hybrid network transformation projects that require both old PROFIBUS devices and industrial Ethernet upgrades.

Technical specifcations for 6GK7343-2AH01-0XA0

Product positioning and compatibility:

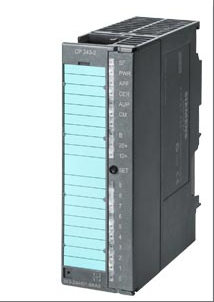

This product is a SIMATIC NET series communication processor, model CP 343-2 AS Interface Master, designed specifically for connecting SIMATIC S7-300 and ET200M to the AS interface, and complies with the AS interface technology data V3.0 standard.

Installation and protection level:

The protection level is IP20, supporting horizontal or vertical track installation and adapting to different industrial environment requirements.

Electrical and interface characteristics:

The power input adopts bolt type terminal connection, with a rated insulation voltage of 24V, supporting stable power supply for on-site equipment.

Equipped with AS-i interface (AS-i+/AS-i -), maximum load current of 4A, using 6.0 AWG 3.5mm wire diameter to achieve efficient data transmission.

Environmental adaptability:

Can be used in non hazardous areas or Class I, Division 2, Groups A, B, C, and D/Class I, Zone 2, Group IIC hazardous areas, with a working temperature range that meets industry standards.

Certification and Compliance:

The product has passed CCC certification and complies with national electrical safety regulations, ensuring reliable application in industrial control systems.

Mechanical parameters:

The external dimensions are 131.00mm × 150.00mm × 50.00mm, with a weight of 0.25kg. The compact design facilitates integration into existing control cabinets.
