SIEMENS 6GK7343-1GX11-0XE0 New and Original High quality

6GK7343-1GX11-0XE0

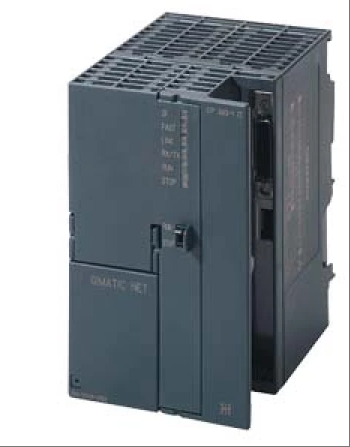

The 6GK7343-1GX11-0XE0 model product is a Siemens industrial communication processor module designed specifically for S7-300 series PLCs, with the core function of connecting devices to industrial Ethernet. This module adopts a compact single width structure design, integrating 2 RJ45 interfaces (supporting 10/100 Mbps full duplex/half duplex transmission rates), built-in 2-port real-time switch, supports PROFINET IO controller and device mode, and can achieve real-time data interaction between S7-300 and HMI, SCADA system and other devices. Its communication protocol is compatible with open TCP/IP, UDP, and ISO on TCP, supports configuring IP addresses through STEP 7 software (supports DHCP, PC tools, or user program allocation), and has SNMP based network management capabilities. The working temperature range of the module is from 0 ° C to 60 ° C, powered by a 24V DC power supply with a power consumption of only 5.8W. It supports security protection through configurable IP access lists and is widely used in manufacturing automation production lines, process control systems, and industrial IoT scenarios, providing efficient and reliable industrial Ethernet communication solutions for small and medium-sized automation systems.

Technical specifcations for 6GK7343-1GX11-0XE0

Interface and Communication Protocol

Interface type: Equipped with 2 RJ45 interfaces, supporting 10/100 Mbps full duplex/half duplex transmission rates, and featuring 2-port real-time switch functionality.

Communication Protocol: Supports PROFINET IO controller and device modes, compatible with TCP/IP, UDP, and ISO on TCP protocols, enabling real-time data exchange with HMI, SCADA systems, and other devices.

2、 Electrical parameters

Working voltage: 24V DC power supply, meeting industrial site power standards.

Power consumption: The typical power consumption is 5.8W, which belongs to low-power design.

3、 Functional characteristics

IP address allocation: Supports configuring IP addresses through DHCP, PC tools, or user programs, and has IP access list security protection function.

Network management: Supports SNMP protocol to achieve network status monitoring and fault diagnosis.

Communication mode: Supports S7 communication (extraction/writing, sending/receiving), advanced diagnostic functions with and without RFC1006, and multicast communication.

Clock synchronization: Supports NTP-CPU Sync function to ensure device time synchronization in distributed systems.

4、 Physical characteristics

Size: Compact design, specific dimensions are 13.60 cm (length) x 14.50 cm (width) x 10.60 cm (height), easy to install.

Weight: Approximately 0.607 kg, lightweight design.

Installation method: Supports on-site installation and adapts to different industrial environments.

Protection level: The IP level is not explicitly mentioned, but as an industrial communication module, it usually has high protection performance.

5、 Environmental adaptability

Working temperature: Supports a working temperature range of 0 ° C to 60 ° C, suitable for various industrial environments.

Storage temperature: not explicitly mentioned, but industrial equipment typically has a wide range of storage temperatures.

Relative humidity: not explicitly mentioned, but industrial equipment typically has moisture-proof and dust-proof designs.

6、 System compatibility

Compatible with PLC series: Designed specifically for S7-300 series PLCs, it can be seamlessly integrated into existing systems.

Programming software: supports configuration through STEP 7 software to achieve efficient data exchange with PLC.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
